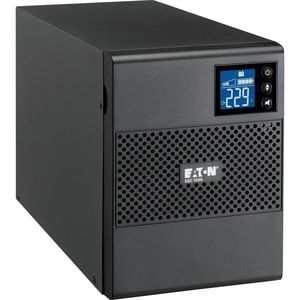

Eaton 5sc 750va/ 525w Mini Tower Ups 6 X Iec Sockets 5sc750i
| SKU: | 201875 |
|---|---|
| MPN: | 5SC750I |
| Manufacturer: | http://www.eaton.com/Eaton/index.htm |
| Brand: | Epson |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
EATON Powerware 5SC 750VA / 525W Line Interactive Sine Wave Mini Tower UPS
6 x IEC Sockets
• The new LCD interface provides clear status of the UPS key parameters such as
input and output voltage, load and battery level, and estimated runtime.
Configuration capabilities are also offered for output voltage, audible alarm
and sensitivity.
• The 5SC offers USB, serial, and relay connectivity. USB port is HID compliant
for automatic integration into Windows, Mac OS and Linux.
• Eaton Intelligent Power Protector ® (IPP) software delivered as standard, can
be used as point to point power management (USB/Serial) or Network based using
IPP as a proxy.
General
Topology Line-interactive high frequency with booster + fader, pure sinewave
output
Configuration Tower
Part Number 5SC750i
Color Black
Rating (VA/Watts) 750/525
Dimensions (H x W x D, mm) 210 x 150 x 340
Weight (kg) 10.4
Warranty 2 years
Electrical Input
Connection
(1) IEC-320-C14
C14
Input Voltage Range 184V-276V
Nominal Voltage 230V
Input frequency Range Without Using Batteries 45?55Hz (50Hz system), 55?65Hz
(60Hz system)
Battery Management ABM®, Automatic battery test, deep discharge protection
Communications
Communication Ports 1 USB port + 1 RS232 serial port and relay contacts (USB and
RS232 ports cannot be used simultaneously)
Environmental & Standards
Audible Noise <40 dB
Operating Temperature 0?35?C
Safety markings IEC/EN 62040-1, UL 1778
EMC Markings IEC/EN 62040-2
Approvals CE, CB report (TUV)
Electrical Output
Voltages 230V (+6/?10 %) (Adjustable to 220V/230V/240V)
Output Receptacles
(6) IEC-320-C13
C13
Output Frequency 50/60Hz +/?0.1 % (autosensing)
Vendor Info
| Marketing Text | Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today's most sensitive IT equipment. |
| PI Date | Oct 2014 |
| Brand Name | Eaton |
| Manufacturer Web Site | http://www.eaton.com |
| Product Type | Uninterruptible Power Supply |
| Input Connection | 1 x IEC-320 C14 |
| Output Connection | 6 x IEC 320 C13 |
| Input Voltage | 230Volt |
| Output Voltage | 230Volt |
| Power Rating | 750VA |
| Input Frequency | 45 - 55Hz |
| Output Frequency | 50 - 60Hz |
| Waveform | Sinewave |
| Depth (mm) | 340.0 |
| Height (mm) | 210.0 |
| Width (mm) | 150.0 |
| Weight (Kg) | 10.4 |
| Colour | Black |
| Other Features | * User Interface : LCD with Status, Alarms, Input/Output/Battery measurements * Configuration : Tower * Topology : Line-interactive high frequency with booster + fader, pure sinewave output |
| Audible Alarm | * Audible Noise : Less than 40 dB |
| Operating Temperature | 0 - 35°C |
