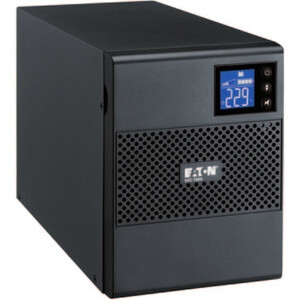

Eaton Powerware 5sc 500va/ 350w Line Interactive Sine Wave Mini Tower Ups
| SKU: | 157454 |
|---|---|
| MPN: | 5SC500i |
| Manufacturer: | http://www.eaton.com/Eaton/index.htm |
| Brand: | Eaton |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
General
Topology Line-interactive high frequency with booster + fader, pure sinewave
output
Configuration Tower
Part Number 5SC500i
Color Black
Rating (VA/Watts) 500/350
Dimensions (H x W x D, mm) 210 x 150 x 240
Weight (kg) 6.6
Warranty 2 years
Electrical Input
Connection
(1) IEC-320-C14
C14
Input Voltage Range 184V-276V
Nominal Voltage 230V
Input frequency Range Without Using Batteries 45?55Hz (50Hz system), 55?65Hz
(60Hz system)
Electrical Output
Voltages 230V (+6/?10 %) (Adjustable to 220V/230V/240V)
Output Receptacles
(4) IEC-320-C13
C13
Output Frequency 50/60Hz +/?0.1 % (autosensing)
Battery Management ABM®, Automatic battery test, deep discharge protection
Communications
Communication Ports 1 USB port + 1 RS232 serial port and relay contacts (USB and
RS232 ports cannot be used simultaneously)
Environmental & Standards
Audible Noise <40 dB
Operating Temperature 0?35?C
Safety markings IEC/EN 62040-1, UL 1778
EMC Markings IEC/EN 62040-2
Approvals CE, CB report (TUV)
