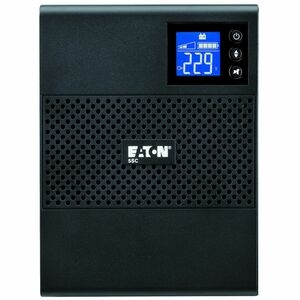

    main product photo

    Eaton Powerware 5SC 1000VA / 700W Line Interactive Sine Wave Mini Tower Ups. Network Based Using Ipp As A Proxy. 5SC1000i

    $802.00
    SKU:157452
    MPN:5SC1000i Link
    Manufacturer:https://www.eaton.com
    Brand: Eaton
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare
    Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today’s most sensitive IT equipment.
    SKU5SC1000i
    UPC743172045164
    BrandEaton
    ColorBlack
    Model5SC1000I
    Weight11.1 kg
    Wattage700 W
    AltitudeUp to 2000 m
    CategoryPower and Rack Equipment
    TopologyLine-interactive
    Feed TypeSingle phase
    VA Rating1000 VA
    DescriptionThe Eaton 5SC 1000i is a line-interactive tower UPS delivering 1000 VA / 700 W protection for small servers, networking and storage. It provides clean sine-wave output, an LCD for real-time status and measurements, and manageability via USB/serial ports and Eaton software. Integrated ABM battery management with user-replaceable lead-acid batteries offers reliable runtime (approximately 5 min at full load, 13 min at half load). Compact freestanding design, 8 C13 output receptacles and C14 input make it suitable for rack or tower deployments where affordable, easy-to-manage power protection is required.
    Form FactorTower / Free standing
    Noise Level<40 dB at 1 meter
    Battery TypeLead-acid maintenance-free (replaceable)
    Sub-CategoryPower Equipment
    Product TitleEaton 5SC 1000i 1000VA (700W) Line-Interactive Tower UPS — 8x C13, LCD, 230V
    Battery Rating12 V / 9 Ah (per battery)
    User InterfaceLCD display
    Expansion SlotsNo
    Output WaveformSine wave
    Battery Quantity2
    Input ConnectionC14
    Output Frequency50/60 Hz
    Package ContentsUSB cable, Serial cable, (2) IEC-IEC cables, Quickstart guide, Safety instructions
    Nominal Frequency50-60 Hz
    Rack Mounting KitNo
    Relative Humidity0 - 90% non-condensing
    Temperature Range0 - 90% non-condensing (note: sources list 0-90% non-condensing for temperature and humidity — use per manufacturer guidance)
    Battery ManagementABM (three-stage) or constant voltage charging method (user selectable); automatic battery test; deep discharge protection
    Dimensions (HxWxD)210 mm x 340 mm x 150 mm
    Ethernet InterfaceNo
    Output Voltage Max240 V
    Output Voltage Min220 V
    BTU Rating (online)143
    Battery ReplaceableUser replaceable
    Communication PortsUSB (HID compliant), Serial (RS232)
    Input Voltage - Max276 V
    Input Voltage - Min184 V
    Input Voltage Range184 - 276 V
    Output Power Factor0.7
    Output Voltage Range230 V (+6% / -10%)
    Runtime at Full LoadApproximately 5 minutes
    Runtime at Half LoadApproximately 13 minutes
    Includes Network CardNo
    Input Frequency Range45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
    Input Nominal Voltage230 V (configurable 220/230/240 V)
    Receptacles / Outputs(8) C13
    Auto Shutdown FunctionYes
    Efficiency at Max Load96%
    Output Nominal Voltage230 V (configurable 220/230/240 V)
    Software CompatibilityEaton Intelligent Power Manager; Eaton Intelligent Power Protector
    Output Power Consumption42 W
    Power Consumption (Idle)42 W
    Secondary Frequency - Max60 Hz
    Secondary Frequency - Min50 Hz
    Documentation / DatasheetsManufacturer datasheets referenced in sources
    Certifications / ComplianceIEC/EN 62040-1, IEC/EN 62040-2, UL 1778, CE, EAC, cTUVus, TUV
    Extended Battery CapabilityNo
    Potential Free Switch ContactNo
    EATON Powerware 5SC 1000VA / 700W Line Interactive Sine Wave Mini Tower UPS. Network based using IPP as a proxy.
