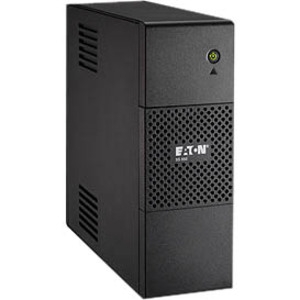

Eaton Powerware 5S550AU Usb 330W Line Interactive Ups 5S550AU
$178.00
| SKU: | 152330 |
|---|---|
| MPN: | 5S550AU Link |
| Manufacturer: | https://www.eaton.com |
| Brand: | Eaton |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
The Powerware 5S 550VA/330W LED uninterruptible power system (UPS) was designed to provide the best UPS power protection against the threats that lurk in public utilities. This line-interactive UPS system delivers the ultimate in power quality, constantly safeguarding your equipment from power outages, surges, sags, brownouts, and over-voltage conditions—while also providing varying degrees of power management for additional threats. If utility power is interrupted, even briefly, the Powerware 5S 550VA/330W transfers to UPS battery power.
Typical Backup Time at full load: 4 minutes, at half load: 12 minutes
Typical Backup Time at full load: 4 minutes, at half load: 12 minutes
Specifications
▼
| Brand | Eaton |
|---|---|
| Color | Black |
| Model | 5S550AU |
| Runtime | Standard runtime (see typical backup times) |
| Software | Power management software included |
| Topology | Line-Interactive (AVR with Booster + Fader) |
| Warranty | 2 years (manufacturer warranty, includes batteries) |
| Batteries | User-replaceable internal battery (includes batteries; replaceable) |
| Rating_VA | 550 VA |
| Weight_kg | 4.96 |
| Description | Eaton 5S550AU 550VA/330W line-interactive UPS provides compact, cost-effective backup power and automatic voltage regulation for workstations, desktop PCs, telephony and POS equipment. Features six Australian 10A outlets (3 with battery backup + surge protection, 3 surge-only), AVR (booster + fader), HID-compliant USB communications (cable supplied) and LAN/telephone/data-line protection. User-replaceable batteries with automatic battery test and deep-discharge protection; power management software included. Typical backup time: ~4 minutes at full load, ~12 minutes at half load. Tower form factor can be used as a standalone tower or mounted under a monitor. 2 year manufacturer warranty (includes batteries). |
| Form Factor | Tower (can be placed under monitor / horizontal mounting) |
| Part Number | 5S550AU |
| Rating_Watts | 330 W |
| Audible Noise | < 40 dB at 1 meter |
| Dimensions_mm | 250 x 87 x 260 (H x W x D) |
| Product Title | Eaton 5S550AU 550VA / 330W Line-Interactive Tower UPS (AVR, USB) |
| Nominal Voltage | 230 V |
| Battery Features | Automatic battery test Deep-discharge protection Cold-start capable Replaceable batteries |
| Input Connection | 1 x Australian 10A |
| Output Receptacles | 3 x Australian 10A outlets with battery backup + surge protection; 3 x Australian 10A outlets surge-only |
| Communication Ports | HID-compliant USB port (cable supplied) |
| Input Voltage Range | 175 V - 275 V |
| Operating Frequency | 50-60 Hz (auto-select) |
| Typical Backup Time | Approximately 4 minutes at full load; approximately 12 minutes at half load |
| Accessories_Included | USB cable Power management software |
| Data Line Protection | Tel/Fax/Modem/Internet and Ethernet (LAN/telephone line protection) |
| Operating Temperature | 0 to 40 °C |
| Output Nominal Voltage | 230 VAC |
| Alternative Part Numbers | 424737 PW85514 743172436276 |
| Output Voltage Regulation | 230 V ±10% |
| Automatic Voltage Regulation | Yes |
| Certifications_and_Standards | IEC/EN 62040-1 IEC/EN 62040-2 CE CB Report |
