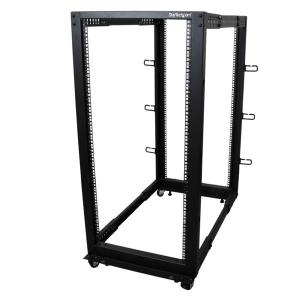

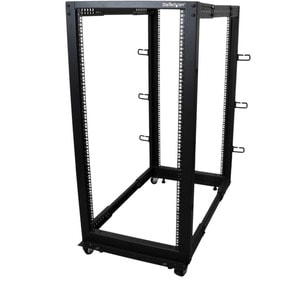

Startech 25u Adjustable Depth Open Frame 4 Post Server Rack Cabinet - Flat Pack W/ Casters / Levelers And Cable Management Hooks- 25u 4 Post R 4postrack25u
| SKU: | 230581 |
|---|---|
| MPN: | 4POSTRACK25U Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Features
-
25U Open frame design
-
Adjustable mounting depth from 22 - 40in
-
Supports a static loading capacity of 1200lbs (544kg)
-
Easy-to-read rack Unit (U) and depth adjustment markings
-
Casters, leveling feet and cable management hooks included
-
Pre-drilled holes to secure the rack directly to the floor
-
Easy to assemble
-
Flat-packed for easy shipping
The 4POSTRACK25U 25U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.
Designed with ease of use in mind, this 25U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.
This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494) for a universal design that's compatible with most rack equipment.
For a complete server storage solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability to better suit your server environment.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Mount your equipment easily, with clearly marked rack units (U) and depth
- Adapt the rack to your equipment easily, with an adjustable depth design
- Customize the rack to fit your environment using the included optional accessories
Specifications
| Hardware | |
| Adjustable Mounting Rails | Yes |
| Adjustable Size of Built-in Leveling Feet | 100 mm [3.94 in] |
| Cable Management | Yes Hooks |
| Casters | Included |
| Fan(s) | No |
| Frame Type | Open Frame |
| Industry Standards | EIA-310-D |
| Ladder Offset | 15 mm [0.6 in] |
| Ladder Type | L-Shape |
| Mounting Holes | Square |
| Number and Type of Included Cage Nuts | M6 |
| Rack Type | 4-Post |
| Style | Floor-Standing |
| Tools Included | Yes |
| U Height | 25U |
| U Markings | Yes |
| Wallmountable | No |
| Packaging Information | |
| Flat Pack (Assembly Required) | Yes |
| Shipping (Package) Weight | 33.7 kg [74.6 lb] |
| Performance | |
| Weight Capacity (Stationary) | 544.3 kg [1202.9 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| External Depth | 1048 mm [41.3 in] |
| External Height | 1213 mm [47.8 in] |
| External Width | 604 mm [23.8 in] |
| Height with Casters | 1290 mm [50.8 in] |
| Internal Height | 1115.8 mm [43.9 in] |
| Maximum Mounting Depth | 1017 mm [40 in] |
| Minimum Mounting Depth | 560 mm [22 in] |
| Product Height | 1213 mm [47.8 in] |
| Product Length | 1048 mm [41.3 in] |
| Product Weight | 29.6 kg [65.5 lb] |
| Product Width | 604 mm [23.8 in] |
| Rail Thickness | 2 mm [0.1 in] |
| What's in the Box | |
| Included in Package | Base Bracket |
| Cable Management Hook | |
| Casters | |
| Center Section | |
| Corner Section | |
| Grounding Wires | |
| Hook Mounting Screw | |
| Left Vertical Rail | |
| Leveling Feet | |
| M6 (10mm) Wrench | |
| M6 Cage Nut | |
| M6 Flange Nut | |
| M6 Flat Washer | |
| M6 Phillips Head Screw | |
| M6 Screw | |
| M8 (13mm) Wrench | |
| M8 Bolt | |
| M8 Washer | |
| Phillips Screwdriver | |
| PVC Cup Washer | |
| Right Vertical Rail | |
| Top Bracket | |
Vendor Info
The 4POSTRACK25U 25U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.
Designed with ease of use in mind, this 25U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.
This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494) for a universal design that's compatible with most rack equipment.
For a complete server storage solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability to better suit your server environment.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
