In Win Iw-Lc-Sr24 1 Cooling Fan/Radiator/Water Block/Pump - Processor - 120 Mm Maximum Fan Diameter - 2 X Fan(s) - 172.45m³/h Maximum Airflow - 2500 Rpm - Liquid Cooler Cooler - Dual Ball Bearing - 4-pin Pwm, 3-pin Argb - Compatible Intel Socket: H4 Lga
-1151, B Lga-1366, Lga 2011-v3, H3 Lga-1150, R4 Lga-2066, R Lga-2011, H Lga-1156, H2 Lga-1155, Lga-1200 - Compatible AMD Socket: FM1, AM2+ Pga-940, AM3+, FM2, AM2 Pga-940, AM3 Pga-941, FM2+, AM4, TR4 - Argb LED - Aluminium Radiator SR24 AIO CPU
$161.00
| SKU: | 296823 |
|---|---|
| MPN: | SR24 AIO CPU Link |
| Manufacturer: | http://www.in-win.com.tw/Corporate/zh/ |
| Brand: | Inwin |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼

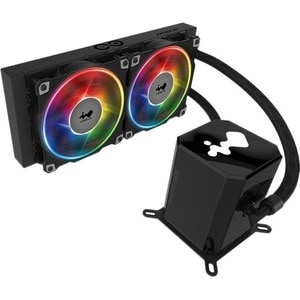

TWIN TURBINES LIQUID CPU COOLER
Patented Integrated Twin Turbines
The patented twin-turbine function runs parallel with one another and functions simunateously to push both currents toward the copper cold-plate to significantly reduce the temperature and keep hardware cool.
Cautionary LEDs
The pump illuminates a white LED logo under normal circumstances. If it detects an unusual current or excessive heat, the LEDs will flash red and blue to prevent damaging components.
Radiator Fans that Flow!
The Jupiter series AJF120 case fans are specially designed for liquid-cooling. The fans feature high airflow (101.5 CFM), high static pressure (4.22mm H2O) and possesses a high-speed mode that ramp up the RPMs to 2500.
Approach to Noise Reduction
The noise of an All-In-One liquid cooling radiator is difficult to control. The main reason is because of the way the high airflow sounds when it runs through the traditional radiator fins. To combat this, the SR series feature the AJF120 fans to provide the best operation performance, while reducing noise pollution.
Array of Microchannel Fins
The SR series possesses a high waterflow pump, which enhances cooling performance directly on the copper plate to cool the CPU. The copper plate hosts an array of microchannel fins that dissipates heat.
Syncs with Addressable Motherboards
There are about 16.8 million ARGB color possibilities, which means the AJF120 case fans allow the customization to meet your build's standards. Users can choose to control lighting independently by using the One-Click controller included or to sync with an addressable motherboard (3-pin, 5V).
Patented Integrated Twin Turbines
The patented twin-turbine function runs parallel with one another and functions simunateously to push both currents toward the copper cold-plate to significantly reduce the temperature and keep hardware cool.
Cautionary LEDs
The pump illuminates a white LED logo under normal circumstances. If it detects an unusual current or excessive heat, the LEDs will flash red and blue to prevent damaging components.
Radiator Fans that Flow!
The Jupiter series AJF120 case fans are specially designed for liquid-cooling. The fans feature high airflow (101.5 CFM), high static pressure (4.22mm H2O) and possesses a high-speed mode that ramp up the RPMs to 2500.
Approach to Noise Reduction
The noise of an All-In-One liquid cooling radiator is difficult to control. The main reason is because of the way the high airflow sounds when it runs through the traditional radiator fins. To combat this, the SR series feature the AJF120 fans to provide the best operation performance, while reducing noise pollution.
Array of Microchannel Fins
The SR series possesses a high waterflow pump, which enhances cooling performance directly on the copper plate to cool the CPU. The copper plate hosts an array of microchannel fins that dissipates heat.
Syncs with Addressable Motherboards
There are about 16.8 million ARGB color possibilities, which means the AJF120 case fans allow the customization to meet your build's standards. Users can choose to control lighting independently by using the One-Click controller included or to sync with an addressable motherboard (3-pin, 5V).
Specifications
▼
| Application/Usage | Processor |
| Product Type | Cooling Fan/Radiator/Water Block/Pump |
| Connectors | 3-pin ARGB, 4-pin PWM |
| Product Model | IW-LC-SR24 |
| Brand Name | In Win |
| Cooler Type | Liquid Cooler |
| Number of Fans | 2 |
| Product Family | SR |
| LED Color | ARGB |
| Maximum Airflow | 172.45m³/h |
| Fan Speed (Max) | 2500 rpm |
| Maximum Fan Diameter | 120 mm |
| Compatible Intel Socket | B LGA-1366, H LGA-1156, H2 LGA-1155, H3 LGA-1150, H4 LGA-1151, LGA 2011-v3, LGA-1200, R LGA-2011, R4 LGA-2066 |
| Compatible AMD Socket | FM1, TR4, FM2+, FM2, AM3 PGA-941, AM4, AM3+, AM2 PGA-940, AM2+ PGA-940 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Fan Bearing Type | Dual Ball Bearing |
| Noise Levels (A-Weighted) | 23 dB(A) |
| Manufacturer Part Number | SR24 AIO CPU |
| Manufacturer Website Address | http://www.in-win.com.tw/Corporate/zh/ |
| Packaged Quantity | 1 |
| Manufacturer | In Win Development, Inc |
| Product Name | Twin Turbines Liquid CPU Cooler |
| Product Series | SR |
| Package Contents | • Twin Turbines Liquid CPU Cooler • 2 x InWin AJF120 Addressable Fan • ARGB One-Click Controller • Fan and Radiator Mounting Screws Pack • Mounting Kit for CPU Sockets • Cable Pack |
| Environmentally Friendly | Yes |
| Material Details | • Copper Water Block • Copper Plate • Rubber Tubing • Plastic Pump • Nylon Tubing |
| Weight (Approximate) | 1.50 kg |
| Radiator Height | 120 mm |
| Radiator Width | 27 mm |
| Radiator Depth | 277 mm |
| Fan Height | 26 mm |
| Fan Width | 120 mm |
| Fan Depth | 120 mm |
| Water Block Height | 100 mm |
| Water Block Width | 68 mm |
| Water Block Depth | 68 mm |
| Radiator Material | Aluminium |
| Fan Diameter Details | 2 x 120mm |
| Shipping Dimensions | Height 13.5, Width 26.8, Length 33.4, Shipping Weight 2.13 KG |
Vendor Info
▼
In Win IW-LC-SR24 1 Cooling Fan/Radiator/Water Block/Pump - Processor - 120 mm Maximum Fan Diameter - 2 x Fan(s) - 172.45m³/h Maximum Airflow - 2500 rpm - Liquid Cooler Cooler - Dual Ball Bearing - 4-pin PWM, 3-pin ARGB - Compatible Intel Socket: H4 LGA-1151, B LGA-1366, LGA 2011-v3, H3 LGA-1150, R4 LGA-2066, R LGA-2011, H LGA-1156, H2 LGA-1155, LGA-1200 - Compatible AMD Socket: FM1, AM2+ PGA-940, AM3+, FM2, AM2 PGA-940, AM3 PGA-941, FM2+, AM4, TR4 - ARGB LED - Aluminium Radiator
