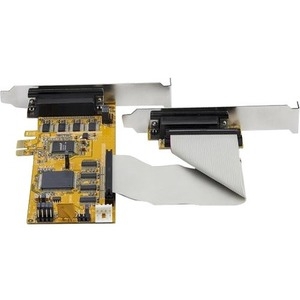

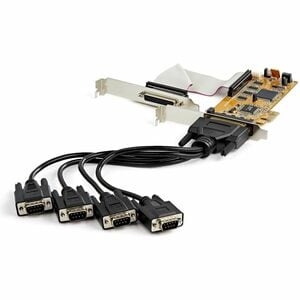

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe To DB9 Controller 16C1050 Uart, Low Profile, 15kV Esd, Windows Only, Taa - 8-Port PCI Express RS232 Serial Adapter Card 16C1050 Uart 15kV Esd; Low Profile - Bi-directional Speed 921.6Kbps/po
rt | 256byte Fifo - Controller Card; Pin 9 Power 5v/12v, 3A Max - 2xDB44 To DB9 Cables W/Hex Nuts - Windows Only; Systembase SB16C1058PCI PEX8S1050LP
$357.00
| SKU: | 295267 |
|---|---|
| MPN: | PEX8S1050LP Link |
| Manufacturer: | http://www.startech.com/au |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps. Connect your Peripherals with 8 Serial Ports The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors. Versatile Use The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor. Windows Only This PCI Express card is only compatible with Windows and Windows server. More from the Manufacturer
Specifications
▼
| Host Interface | PCI Express x1 |
| Product Type | Multiport Serial Adapter |
| Form Factor | Plug-in Card |
| Brand Name | StarTech.com |
| TAA Compliant | Yes |
| Manufacturer Part Number | PEX8S1050LP |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 8-Port PCI Express Serial Card with 16C1050 UART |
| Ports Expandability | 8 x DB-9 - Serial, Via Cable |
| Number of Serial Ports | 8 |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/pex8s1050lp_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/pex8s1050lp_rohs.pdf |
| End of Life Manual Availability | Yes |
| REACH free of SVHC | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/pex8s1050lp_weee.pdf |
| Weight (Approximate) | 116 g |
| Height | 61 mm |
| Width | 22.9 mm |
| Product Color | Yellow |
| Color Family | Yellow |
| Platform Supported | Linux, PC |
| Maximum Data Transfer Rate | 921.40 kbit/s |
| Shipping Dimensions | Height 7, Width 19, Length 29.5, Shipping Weight 0.74 KG |
Vendor Info
▼
StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe to DB9 Controller 16C1050 UART, Low Profile, 15kV ESD, Windows Only, TAA - 8-Port PCI Express RS232 serial adapter card 16C1050 UART 15kV ESD; Low Profile - Bi-directional speed 921.6Kbps/port | 256byte FIFO - Controller card; Pin 9 power 5v/12v, 3A max - 2xDB44 to DB9 cables w/Hex nuts - Windows only; Systembase SB16C1058PCI
