Ergotron Hx Wall Dual Monitor Arm White 45-479-216
| SKU: | 247255 |
|---|---|
| MPN: | 45-479-216 Link |
| Manufacturer: | http://www.ergodirect.com/ |
| Brand: | Ergotron |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
Description

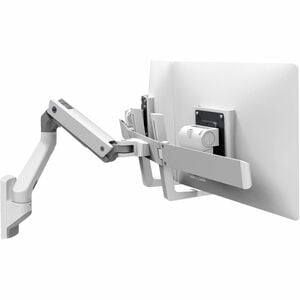

Ergotron 45-479-216 HX Dual Monitor Arm is the perfect accessory to add flexibility and superior ergonomics to your monitor or TV. The sleek new design combined with dual hinge bow works with two 32” monitors and includes a handle for easy positioning.
Extension/retraction motion and integrated height adjustment capability promote user comfort.
Technical Drawing
Specifications
Technical Specifications
| | | | | | | |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 32" | Up to 17.5 lbs 7.9 kg | 11.5" 29.2 cm | 75° | 180° | 360° | MIS-D |
Product Information
| Part Number | 45-479-216 (white) |
| Description | HX Wall Dual Monitor Arm |
| Includes |
|
| Arm | Folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas |
| Portrait/landscape | Rotation with lockout |
| Cable Management | Streamline cable management that routes cables under arm and within extension |
| Mounting Standards | VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). The optional VESA Bracket Adaptor Kit (97-759) allows the attachment of displays with VESA hole patterns of 200 x 100, 200 x 200, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm |
| Mounting Options | Attaches directly to sturdy vertical surfaces. Where applicable, apply to wood stud. Also attaches to wall plate, or to wall track using bracket 97-091 (order separately) |
| Weight Capacity | Maximum individual LCD weight = 5–17.5 lbs (2.3–7.9 kg) per monitor. Total LCD capacity = 10–35 lbs (4.6–15.8 kg) |
| Hinge Bow | Pivots 40° inward and 90° outward |
| Rotation | Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base |
| Tilt Range | 70° backward, 5° forward |
| Pivots | Feature quick install and release and feature effortless portrait to landscape 6° pan and tilt |
| Extended Reach | Up to 24.5" (60 cm) |
| Vertical Height Adjustment | 11.5" (29.2 cm) |
| Shipping Dimensions | 16" x 18.8" x 7.5" (48 x 41 x 19 cm) |
| Shipping Weight | 26.9 lbs (12.2 kg) |
| Warranty | Ten (10) years |
Benefits
-
Increases viewing comfort: Helps reduce eye, back and neck strain
-
The hinged bow allows monitors to pan from left to right independently with ease, ideal for sharing screens and optimal monitor alignment
-
Additionally, the hinged bow optimizes the viewing parabola for enhanced ergonomic comfort
-
Independent, quick release monitor pivots with effortless P/L, pan, and tilt for custom positioning of each monitor
-
Rotation-stop on base limits range to 180° and prevents monitor from making contact with wall
-
Patented CF motion technology provides premium ease-of-use display adjustment
-
Cable management feature routes cables tightly under the arm and through the extension, out of the way
-
Eliminates scrolling: Rotate screens for portrait viewing of photos and documents
-
Folding arm frees up space in constrained areas
-
Upgrade this arm with the HX Triple Bow Kit to create a triple monitor arm.
-
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Vendor Info
| Marketing Text | The HX Dual Monitor Arm is the perfect accessory to add flexibility and superior ergonomics to your monitor or TV. The sleek new design combined with dual hinge bow works with two 32" monitors and includes a handle for easy positioning. |
| PI Date | Jul 2017 |
| Brand Name | Ergotron |
| Manufacturer Web Site | http://www.ergotron.com |
| Product Type | Monitor Arm |
| Display Size Supported | 32inch |
| Weight Capacity | 2.3 - 7.9Kg |
| Tilt | 75degree |
| Pan | 180degree |
| Rotation | 360degree |
| Mounting Standards | MIS-D |
| Color | White |
| Package Includes | * Arm, extension, hinge bow, (2) monitor pivots, handle, wall mount and monitor mounting hardware |
| Other Features | * Increases viewing comfort: Helps reduce eye, back and neck strain * Cable management feature routes cables tightly under the arm and through the extension, out of the way * Eliminates scrolling: Rotate screen for portrait viewing of photos and documents * Folding arm frees up space in constrained areas |
| Warranty Information | 10 Years |
