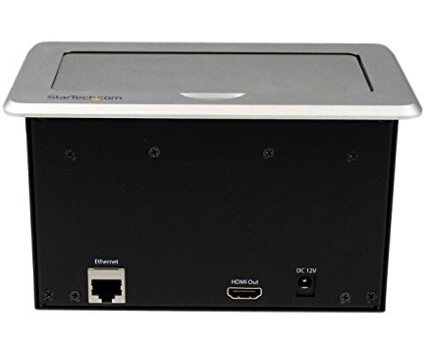

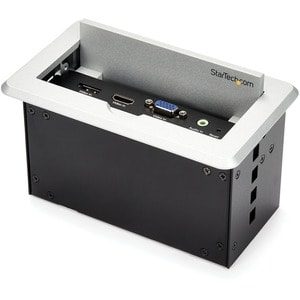

Startech Conference Table Connectivity Box For A/ V - Hdmi / Vga / Displayport Inputs - Hdmi
SKU: | 273888 |
---|---|
MPN: | BOX4HDECP2 Link |
Manufacturer: | https://www.startech.com/ |
Brand: | Startech |
Warranty: | Standard Manufacturer's Warranty |
Availability: | In stock |
Fright Estimate |
Description
This conference table connectivity box for A/V installs in your table or lectern to provide A/V, networking, and USB charging connectivity in your boardroom, auditorium, or classroom. The box makes it easy to connect HDMI, DisplayPort and VGA laptops to your room’s large HDMI display, and provides LAN and USB power connectivity for charging USB devices. The box also provides some boardroom cable management by hiding connectivity cables in your table.
Collaborate Easily Using the Big Screen
The table box enables presenters in your conference room to easily share their laptop screen on the room’s large display or projector, with supported resolutions up to 4K 30Hz.
To share video from virtually any laptop, the table box supports HDMI, VGA and DisplayPort inputs and automatically outputs the most recently connected input to the HDMI display.
Provide Convenient USB Charging and Wired Network Connectivity
Enabling visitors in your conference room to charge their iPhone, iPad, smartphone, or tablet, the table box features three USB charge ports. Plus, the box features an Ethernet pass-through port to provide secure wired network connectivity in rooms where Wi-Fi® isn’t available.
Add Style and Technological Sophistication to Any Room
The boardroom interconnect box has an aluminum finish that complements your space. The hideaway panel eliminates clutter by discreetly covering the connection ports when they’re not in use.
TAA compliant BOX4HDECP2 is backed by a 2-year warranty and free lifetime technical support.
Specifications
WARRANTY INFORMATION | ||
---|---|---|
Warranty | 2 Years | |
HARDWARE | ||
Active or Passive Adapter | Active | |
Passive | ||
Audio | Yes | |
AV Input | VGA | |
3.5 mm Audio | ||
HDMI | ||
DisplayPort | ||
AV Output | HDMI | |
USB Pass-Through | No | |
PERFORMANCE | ||
Aspect Ratio | 16:9 | |
Maximum Analog Resolutions | 1920 x 1200 60Hz | |
Maximum Cable Length | 50 ft [15.2 m] | |
Maximum Digital Resolutions | 3840x2160 (4K) 30Hz | |
Supported Resolutions | 3840x2160 (4K) 30Hz (HDMI and DP Inputs Only) 2560x1600 60Hz (HDMI and DP Inputs Only) 1920x1200 60Hz (Maximum VGA Input) 1920x1080 (1080p) 60Hz 1280x720 (720p) 60Hz **Lower resolutions and refresh rates, not stated but below the maximum, may also be supported | |
Video Revision | HDMI 1.4 | |
DisplayPort 1.2 | ||
Wide Screen Supported | Yes | |
CONNECTOR(S) | ||
Connector A | 1 - HDMI (19 pin) Female Input | |
1 - VGA (15 pin, High Density D-Sub) Female Input | ||
1 - 3.5 mm Mini-Jack (3 Position) Female Input | ||
1 - RJ-45 Female | ||
3 - USB Type-A (4 pin) USB 2.0 Female | ||
1 - DisplayPort (20 pin) Female Input | ||
Connector B | 1 - HDMI (19 pin) Female Output | |
1 - RJ-45 Female | ||
SPECIAL NOTES / REQUIREMENTS | ||
Note | VGA (Input) to HDMI (Output) - HDMI Output Port is Active DisplayPort (Input) to HDMI (Output) - HDMI Output Port is Active HDMI (Input) to HDMI (Output) - HDMI Output Port is Passive | |
POWER | ||
Input Voltage | 100 ~ 240 AC | |
Output Current | 2A | |
Output Voltage | 12 DC | |
Plug Type | N | |
Power Consumption (In Watts) | 24 | |
Power Source | AC Adapter Included | |
ENVIRONMENTAL | ||
Humidity | 10% to 85% (non-condensing) | |
Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
PHYSICAL CHARACTERISTICS | ||
Color | Silver | |
Product Height | 7.3 in [185 mm] | |
Product Length | 6.7 in [170 mm] | |
Product Weight | 3.8 lb [1.7 kg] | |
Product Width | 6.1 in [155 mm] | |
PACKAGING INFORMATION | ||
Shipping (Package) Weight | 0.4 lb [0.2 kg] | |
WHAT'S IN THE BOX | ||
Included in Package | 1 - conference table box | |
1 - universal power adapter (NA/JP, EU, UK, ANZ) | ||
1 - die cut outline | ||
2 - mounting brackets | ||
1 - cable tie bracket | ||
2 - cable tie bracket screws | ||
1 - quick-start guide |
