Startech Hdmi Splitter - 2-Port - 4K 60Hz - Hdmi Splitter 1 In 2 Out - 2 Way Hdmi Splitter -

HDMI Port Splitter St122Hd202
$93.00
SKU:273860
MPN:ST122HD202 Link
Manufacturer:https://www.startech.com/
Brand: Startech
Warranty:Standard Manufacturer's Warranty
Availability:

Preorder 2-3 weeks

Fright Estimate

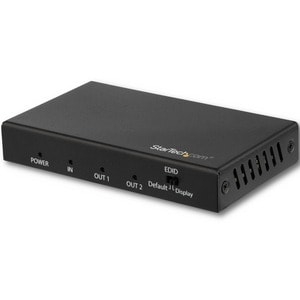

This 2-Port 4K HDMI splitter connects your HDMI video source to two HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.

True 4K at 60Hz and HDR

With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.

The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.

Widely Compatible

The 2-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.

Easy Installation

For hassle-free setup, the 1x2 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.

ST122HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Audio Yes
  AV Input HDMI
  AV Output HDMI
  Industry Standards HDMI 2.0
  Ports 2
PERFORMANCE
  Audio Specifications 7.1 surround sound
  Maximum Cable Length 16.4 ft [5 m]
  Maximum Data Transfer Rate 18Gbps
  Maximum Digital Resolutions 3840x2160 (4K) @ 60Hz
2560x1600
1920x1200
1920x1080 (1080p)
1280x720 (720p)
  Video Revision HDMI 2.0
  Wide Screen Supported Yes
CONNECTOR(S)
  Connector A 1 - HDMI (19 pin) Female Input
  Connector B 2 - HDMI (19 pin) Female Output
INDICATORS
  LED Indicators 1 - Power LED
    1 - Input LED
    2 - Output LEDs
POWER
  Input Current 0.2
  Input Voltage 100 ~ 240 AC
  Output Current 1 A
  Output Voltage 5 DC
  Power Consumption (In Watts) 5
ENVIRONMENTAL
  Humidity 20~90 % RH (non-condensing)
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Product Height 2.2 in [55 mm]
  Product Length 8.4 in [214 mm]
  Product Weight 13.9 oz [394 g]
  Product Width 5.8 in [147 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 0.9 lb [0.4 kg]
WHAT'S IN THE BOX
  Included in Package 1 - HDMI splitter
    1 - universal power adapter
    1 - quick-start guide
