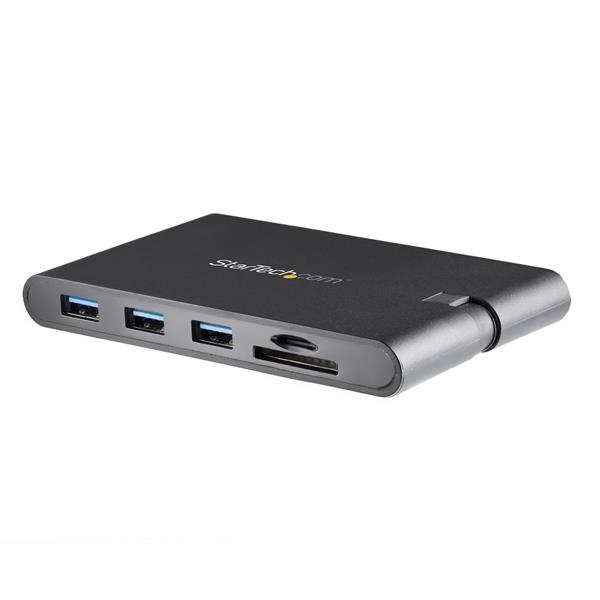

Startech Usb C Multiport Adapter With Hdmi And Vga - Mac / Windows - 3X Usb 3.0 - Sd / Micro
| SKU: | 273805 |
|---|---|
| MPN: | DKT30CHVSCPD Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Turn your USB-C™ equipped laptop into a mobile workstation. This sleek, compact USB-C multiport adapter makes it easy to connect your MacBook Pro or Windows laptop to an HDMI or VGA monitor. Power through your workday, with three USB 3.0 (Type-A) ports with Fast-Charge support, SD™ and microSD™ card slots, and a Gigabit Ethernet port.
Connect to an external monitor
The universal USB Type-C™ multiport adapter (Thunderbolt 3 port compatible) offers enhanced productivity in the boardroom or classroom. Connect your laptop to one external monitor:
- 4K HDMI (3840 x 2160p @ 30Hz) or VGA (1920 x 1200 @ 60Hz)
Charge your laptop and peripherals
With support for USB Power Delivery 3.0 (up to 85W), the USB-C multiport adapter lets you power and charge your laptop, and power your peripherals at the same time. PD 3.0 features Fast Role Swap to prevent USB data disruption when switching power sources (bus power and USB-C power adapter).
Connect USB devices
Connect your USB devices using the three USB 3.0 (Type-A) ports. Each USB port is a fast-charge and sync port, to ensure your tablet and smartphone are charged and ready. Each port offers 7.5W of charging power, with a combined total of 10W with all three ports in use.
SD/microSD card access
Access the SD and microSD slots at the same time, and easily move data from one card to the other.
Easy portability
For mobile use, the USB-C adapter is bus-powered and lightweight, with a wraparound USB-C cable.
DKT30CHVSCPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 3 Years | |
| HARDWARE | ||
| 4K Support | Yes | |
| Bus Type | USB-C | |
| Chipset ID | VIA/VLI - VL102 VIA/VLI - VL817 Parade - PS8338B Parade - PS176 Analogix - ANX9833 ALCOR MICRO - AU84612 Realtek - RTL8153 | |
| Displays Supported | 1 | |
| Fast-Charge Port(s) | Yes | |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 | |
| PERFORMANCE | ||
| Audio Specifications | The HDMI port supports audio output | |
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| Full Duplex Support | Yes | |
| General Specifications | With support for USB Power Delivery 3.0, the multiport adapter will power and charge your laptop, and power your peripherals at the same time, providing up to 85W of charging power, when using a 100W power adapter. Charging power will be less when using a lower-wattage power adapter. | |
| Supports Fast Role Swap of PD 3.0, to ensure the connected devices will not be disconnected when your power adapter is disconnected from the multiport adapter. | ||
| Each USB 3.0 port provides up to 7.5W of charging power, with a combined total of 10W when all 3 ports are in use. The charge provided depends on the number of devices connected and the amount of current each device draws. | ||
| Each one of the three USB 3.0 (Type A) ports is also a fast-charge and sync port to charge your tablet or smartphone. Only one fast-charge port can be used at a time. | ||
| Maximum Analog Resolutions | 1920 x 1200p @ 60Hz (VGA) | |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) | |
| Maximum Digital Resolutions | 3840 x 2160p (HDMI) @ 30Hz Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p | |
| Type and Rate | USB 3.0 - 5 Gbit/s | |
| UASP Support | Yes | |
| CONNECTOR(S) | ||
| Connector Type(s) | 1 - HDMI (19 pin) Female | |
| 1 - VGA (15 pin, High Density D-Sub) Female | ||
| 3 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female | ||
| 1 - RJ-45 Female | ||
| 1 - SD / MMC Slot Female | ||
| 1 - MicroSD Female | ||
| 1 - USB-C (24 pin) USB Power Delivery only Female | ||
| 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male | ||
| SOFTWARE | ||
| OS Compatibility | Windows® 7, 8, 8.1, 10 Mac OS® 10.11 to 10.14 Chrome OS™ | |
| SPECIAL NOTES / REQUIREMENTS | ||
| Note | Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 3.0 and DP Alt Mode. | |
| The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 3.0. However, if your laptop’s USB-C port supports USB Power Delivery 2.0, it will still support PD pass-through, but it will not support Fast Role Swap. If you laptop's USB-C port does not support Power Delivery, then it will not support PD pass-through. | ||
| A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K) | ||
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. | ||
| Your laptop might have specific charging requirements. The USB-C adapter supports USB Power Delivery 3.0 to provide up to 85W of charging power, when using a 100W power adapter. Charging power will be less when using a lower-wattage power adapter. | ||
| System and Cable Requirements | A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 3.0 and DP Alt Mode) | |
| USB-C power adapter (for example, your laptop’s USB-C based power adapter) | ||
| POWER | ||
| Power Source | USB-Powered | |
| ENVIRONMENTAL | ||
| Humidity | 10~90% RH (Non-condensing) | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) | |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 4.6 in [118 mm] | |
| Color | Black | |
| Enclosure Type | Plastic | |
| Product Height | 0.6 in [14 mm] | |
| Product Length | 4.8 in [122 mm] | |
| Product Weight | 3.1 oz [89 g] | |
| Product Width | 2.8 in [70 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 5.9 oz [166 g] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - multiport adapter | |
| 1 - User manual | ||
