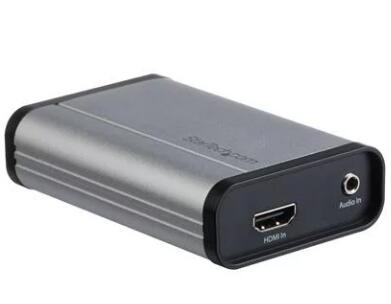

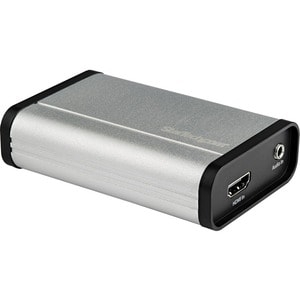

Startech Hdmi To Usb C Video Capture Device - Vc - Plug And Play - Mac And Windows - 1080P -
SKU: | 273791 |
---|---|
MPN: | UVCHDCAP Link |
Manufacturer: | https://www.startech.com/ |
Brand: | Startech |
Warranty: | Standard Manufacturer's Warranty |
Availability: | In stock |
Fright Estimate |
Description
- Hassle-free USB-C HDMI capture using the UVC video standard and plug-and-play installation
- Live broadcast your video source over the internet, with support for live streaming
- Maintain the HD picture quality of your source content (maximum resolution 1080p at 60fps)
This HDMI to USB-C video capture device lets you record HDMI video to your USB-C™, USB-A or Thunderbolt™ 3 computer, and features a durable aluminum enclosure so it can safely travel with your laptop.
Easy to set up, easy to capture
For hassle-free recording, you can install the HDMI capture device by simply connecting it to your computer. The capture device features USB Video Class (UVC), a video capture standard that’s natively supported by Mac, Windows® and Linux®. Unlike other capture devices that require proprietary driver installation, UVC based capture devices install automatically for a truly plug-and-play solution. Also, with this capture device you're not limited to the included software. You can use any third-party software that uses UVC compatible frameworks such as Quicktime or DirectShow®.
Capture HD video at 1080p 60fps
Record 1080p video at 60fps (frames per second), to save your content so it can be shared, stored, or edited. Capture meetings, presentations, conference calls and from security equipment directly to your computer.
Stream your 1080p content
Stream your video over the internet using Twitch™ or other third-party video streaming platforms. With the included software or your own third-party UVC compatible software like Open Broadcaster Software (OBS), you can live broadcast video over the internet using Twitch or other third-party video streaming platforms.
Specifications
WARRANTY INFORMATION | ||
---|---|---|
Warranty | 2 Years | |
HARDWARE | ||
Audio | Yes | |
AV Input | HDMI | |
AV Output | USB | |
Chipset ID | Mstar - MST3363CNK-170 | |
Industry Standards | MPEG4 (H.264) | |
USB Video Class (UVC) | ||
PERFORMANCE | ||
Audio Specifications | 2-channel stereo audio | |
Maximum Digital Resolutions | 1920 x 1080 60 FPS | |
Supported Resolutions | 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600 | |
Wide Screen Supported | Yes | |
CONNECTOR(S) | ||
Connector A | 1 - HDMI (19 pin) Female Input | |
1 - 3.5 mm Mini-Jack (3 Position) Female Input | ||
Connector B | 1 - USB Type-B (9 pin) USB 3.0 Female | |
SOFTWARE | ||
OS Compatibility | Windows® 7, 8, 8.1, 10 MacOS® 10.11 to 10.14 Linux 4.x (LTS Versions only) | |
ENVIRONMENTAL | ||
Humidity | 20-80% RH Non-Condensing | |
Operating Temperature | 0°C to 40°C | |
Storage Temperature | -5°C to 40°C | |
PHYSICAL CHARACTERISTICS | ||
Color | Silver & Black | |
Product Height | 15.4 in [392 mm] | |
Product Length | 8.5 in [215 mm] | |
Product Weight | 2.8 oz [80 g] | |
Product Width | 2.4 in [60 mm] | |
PACKAGING INFORMATION | ||
Shipping (Package) Weight | 3 oz [86 g] | |
WHAT'S IN THE BOX | ||
Included in Package | 1 - capture device | |
1 - USB-C to USB-B cable | ||
1 - USB-A to USB-B cable | ||
1 - HDMI cable | ||
1 - quick-start guide |
