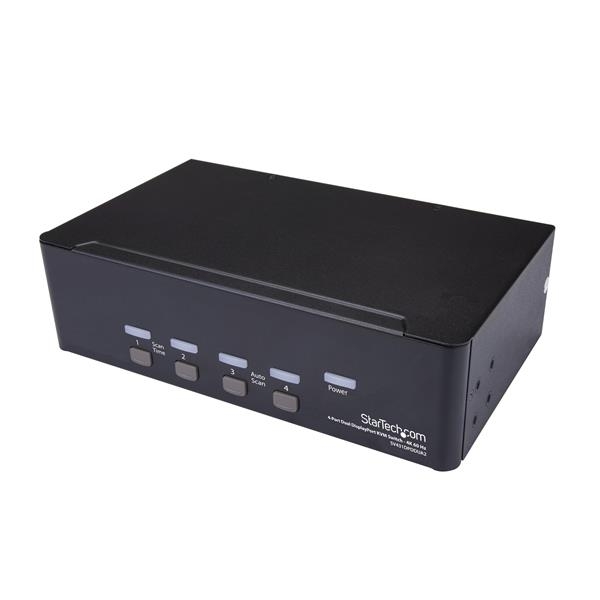

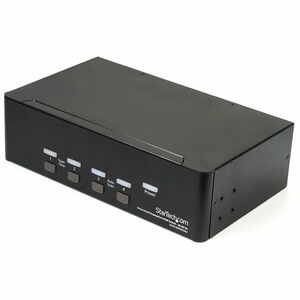

Startech 4 Port Dual Displayport Kvm Switch - Displayport 1.2 Kvm - 4K 60Hz Sv431Dpddua2
| SKU: | 275633 |
|---|---|
| MPN: | SV431DPDDUA2 Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.
Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
The SV431DPDDUA2 is TAA compliant and backed by a 2-year StarTech.com warranty.
Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| Audio | Yes | |
| Cables Included | No | |
| Daisy-Chain | No | |
| KVM Ports | 4 | |
| Number of Monitors Supported | 2 | |
| PC Interface | USB | |
| PC Video Type | DisplayPort | |
| Rack-Mountable | Yes | |
| U Height | 2U | |
| PERFORMANCE | ||
| Aspect Ratio | 16:9 | |
| Auto Scan | 3, 8, 15 & 30 seconds | |
| DVI Support | No | |
| Hot-Key Selection | Yes | |
| IP Control | No | |
| Maximum Data Transfer Rate | 500 Mbps (USB 2.0) | |
| Maximum Digital Resolutions | 3840 x 2160 (Ultra HD 4K) @ 60hz | |
| Maximum Number of Users | 1 | |
| MTBF | 142000 hours | |
| On-Screen Display | No | |
| Port Selection Support | Push Button and Hotkeys | |
| Supported Resolutions | 1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200 2560x1600 3840 x 2160 (4K)@ 60hz | |
| Wide Screen Supported | Yes | |
| CONNECTOR(S) | ||
| Console Interface(s) | 2 - 3.5 mm Mini-Jack (3 Position) Female | |
| 2 - DisplayPort (20 pin) Female | ||
| 2 - USB Type-A (4 pin) USB 2.0 Female | ||
| 2 - USB Type-A (4 pin; HID Port) USB 1.1 Female | ||
| Host Connectors | 2 - USB B (4 pin) Female | |
| 4 - DisplayPort (20 pin) Female | ||
| 8 - 3.5 mm Mini-Jack (3 Position) Female | ||
| INDICATORS | ||
| LED Indicators | 1 - Power | |
| 4 - Green - Online indicator (One LED per port) | ||
| 4 - Red - Select indicator (One LED per port) | ||
| POWER | ||
| Center Tip Polarity | Positive | |
| Input Current | 0.6 A | |
| Input Voltage | 100 ~ 240 AC | |
| Output Current | 1.5 A | |
| Output Voltage | 12 DC | |
| Plug Type | M | |
| Power Consumption (In Watts) | 18 W | |
| Power Source | AC Adapter Included | |
| ENVIRONMENTAL | ||
| Humidity | 0% - 80% | |
| Operating Temperature | 0℃ - 40℃ | |
| Storage Temperature | -10℃ - 60℃ | |
| PHYSICAL CHARACTERISTICS | ||
| Color | Black | |
| Enclosure Type | Steel | |
| Product Height | 2.5 in [63.5 mm] | |
| Product Length | 5 in [127 mm] | |
| Product Weight | 2.7 lb [1.2 kg] | |
| Product Width | 8.5 in [215.9 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 3.9 lb [1.8 kg] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - KVM switch | |
| 1 - universal power adapter (NA/JP, EU, UK, ANZ) | ||
| 1 - quick start guide | ||
| 4 - rubber feet | ||
Vendor Info
| Marketing Text | This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems. |
| PI Date | Oct 2018 |
| Brand Name | Startech |
| Manufacturer Web Site | http://www.startech.com |
| Product Type | KVM Switch |
| No. of Users | 1 |
| No. of Ports | 4 |
| Enclosure | Steel |
| Maximum Resolution | 3840 x 2160 |
| Depth (mm) | 127.0 |
| Height (mm) | 63.5 |
| Width (mm) | 215.9 |
| Weight (Kg) | 1.2 |
| Color | Black |
| Operating Temperature | 0 to 40°C |
| Power | 100 to 240Volt |
| Power Consumption | 18Watt |
| OS Supported | Mac |
| Compliance Standards | * RoHS |
| Other Features | * Maximum productivity with dual-display, multi-computer access * Full multimedia control with separate 3.5 mm microphone and speaker support * Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz |
| Warranty Information | 2 Years |
