Startech Thunderbolt 3 Dock - With Sd Card Reader - 85w Power Delivery - Dual 4k - Windows / Mac
| SKU: | 264693 |
|---|---|
| MPN: | TB3DOCK2DPPD Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
This Thunderbolt™ 3 dock lets you power through your work day, transforming your Thunderbolt 3 equipped MacBook Pro or Windows® laptop into a dual-4K workstation with up to 40Gbps of throughput. The high quality dock features six USB 3.0 ports to connect your peripherals, 85W Power Delivery to power and charge your laptop, plus an SD card reader.
Create a Dual-4K 60Hz Workstation
Great for Ultra HD tasks, this Dual 4K monitor docking station supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Run resource-demanding applications on two independent displays without draining system resources.
Connect your laptop to
- 1x DisplayPort and 1x Thunderbolt 3 USB-C (4096 x 2160p or 3840 x 2160p @ 60Hz, 6 ft./1.8 m USB-C to DP cable included)
- 1x 5K (5120 x 2880p) display (through Thunderbolt 3 USB-C port)
Plenty of Ports
To connect peripherals, the Thunderbolt 3 docking station[LR1] offers six USB 3.0 ports (including a Fast-Charge port and a USB-C port) plus a Gigabit Ethernet port (supporting PXE Boot and Wake-on-LAN) and an audio/microphone port. Plus, daisy chain your Thunderbolt devices with two Thunderbolt 3 ports.
SD Card Reader
Access your SD memory cards or microSD™ cards directly (microSD adapter[LR1] not included). Add storage and backup capability with the SD card slot and macOS X Time Machine or Windows 10 File History.
85W Power Delivery
Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.
The TB3DOCK2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
| Connector(s) | |
| Connector Type(s) | 3.5 mm Mini-Jack (3 Position) Female |
| DisplayPort (20 pin) Female | |
| RJ-45 Female | |
| Thunderbolt? 3 USB-C (24-pin) Female | |
| USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female | |
| USB Type-A (9 pin) USB 3.0 Female | |
| USB Type-C (24 pin) USB 3.0 Female | |
| Environmental | |
| Humidity | 0~95% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -20?C to 70?C (-4?F to 158?F) |
| Hardware | |
| 4K Support | Yes |
| Bus Type | Thunderbolt 3 |
| Chipset ID | Intel - Alpine Ridge JHL6540 Texas Instruments - TPS65983 Fresco - FL1100EX Intel - WGI210AT C-Media - CM6533 Genesys Logic - GL3226 |
| Displays Supported | 2 |
| Fast-Charge Port(s) | Yes |
| Industry Standards | Thunderbolt 3 USB Battery Charging Specification Rev. 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
| Packaging Information | |
| Shipping (Package) Weight | 1.5 kg [3.4 lb] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 40 Gbps (Thunderbolt 3) 10 Gbps (USB 3.1 Gen 2) 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | Dual displays - DisplayPort and Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p at 60Hz Single 4K display - DisplayPort or Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p at 60Hz Single 5K (5120 x 2880p) display (through Thunderbolt 3 USB-C port) |
| Memory Media Type | microSD (Micro Secure Digital) (adapter required) |
| microSDHC (Micro Secure Digital High Capacity) (adapter required) | |
| microSDXC (Micro Secure Digital eXtended Capacity) (adapter required) | |
| SD/MMC (Secure Digital/Multimedia Card) | |
| SDHC (Secure Digital High Capacity) | |
| SDXC (Secure Digital eXtended Capacity) | |
| PXE | Yes |
| Type and Rate | Thunderbolt 3 - 40 Gbit/s |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Space Gray |
| Enclosure Type | Aluminum |

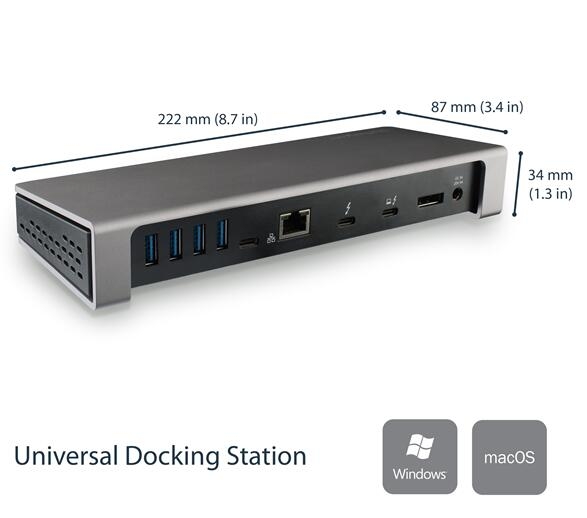

| Product Height | 34 mm [1.3 in] |
| Product Length | 222 mm [8.7 in] |
| Product Weight | 492 g [17.4 oz] |
| Product Width | 87 mm [3.4 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 2.5 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 9 A |
| Output Voltage | 20V DC |
| Plug Type | N |
| Power Consumption (In Watts) | 180 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows? 8, 8.1, 10 macOS 10.12 - 10.13 |
| Special Notes / Requirements | |
| Note | A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K). |
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps. | |
| When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display. | |
| System and Cable Requirements | Thunderbolt 3 equipped computer with a Thunderbolt 3 port. |
| Your laptop's Thunderbolt 3 port must support USB Power Delivery 2.0 in order to power and charge your laptop. | |
| What's in the Box | |
| Included in Package | docking station |
| instruction manual | |
| power cords (NA/JP, ANZ) | |
| Thunderbolt 3 cable | |
| universal power adapter | |
| USB-C to DisplayPort cable | |
