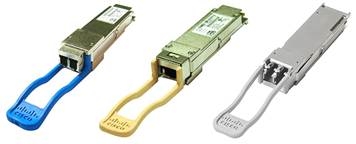

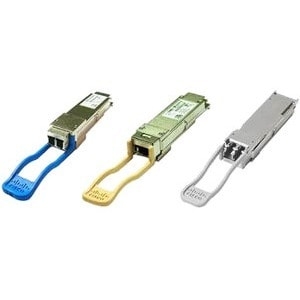

Qsfp 40G Ethernet - LR4 Lite. Lc. 2KM WSP-Q40GLR4L=
$8,645.00
| SKU: | 270093 |
|---|---|
| MPN: | WSP-Q40GLR4L= Link |
| Manufacturer: | http://www.cisco.com/c/en_au |
| Brand: | Cisco |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
The Cisco WSP-Q40GLR4L QSFP Module supports link lengths of up to 2 km over a standard pair of G.652 single-mode fiber (SMF) with duplex LC connectors. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. It is interoperable with 40GBase-LR4 for distances up to 2km. The operating temperature range is from +10 to +60°C with an optical link budget of 4dB. This 4dB link budget offers the ability to support the loss from patch panels in the link in a data center environment.
Specifications
▼
| Product Type | QSFP |
| Network Technology | 40GBase-LR4 |
| Brand Name | Cisco |
| Maximum Data Transfer Rate | 40 |
| Ethernet Technology | 40 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Manufacturer Part Number | WSP-Q40GLR4L= |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Manufacturer | Cisco Systems, Inc |
| Product Model | WSP-Q40GLR4L |
| Product Name | 40GBase-LR4L QSFP Module for SMF |
| Interfaces/Ports Details | 1 x LC Duplex 40GBase-LR4 Network |
| Connector Type | LC |
| Total Number of Ports | 1 |
| Fiber Mode Supported | Single-mode |
| Compatibility | MSA Compliant |
| Form Factor | Hot-swappable |
| Height | 13.5 mm |
| Width | 18.4 mm |
| Depth | 72.4 mm |
| Application/Usage | Optical Network, Data Networking |
| Shipping Dimensions | Height 1.5, Width 13, Length 14.5, Shipping Weight 0.05 KG |
Vendor Info
▼
QSFP 40G ETHERNET - LR4 LITE. LC. 2KM
