Startech Triple-4k Monitor Usb-c Docking Station For Laptops - 60w Usb Power Delivery Dk30ch2dppd

Special Price $406.00 Regular Price $467.00
SKU:259643
MPN:DK30CH2DPPD Link
Manufacturer:https://www.startech.com/
Brand: Startech
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate

Overview

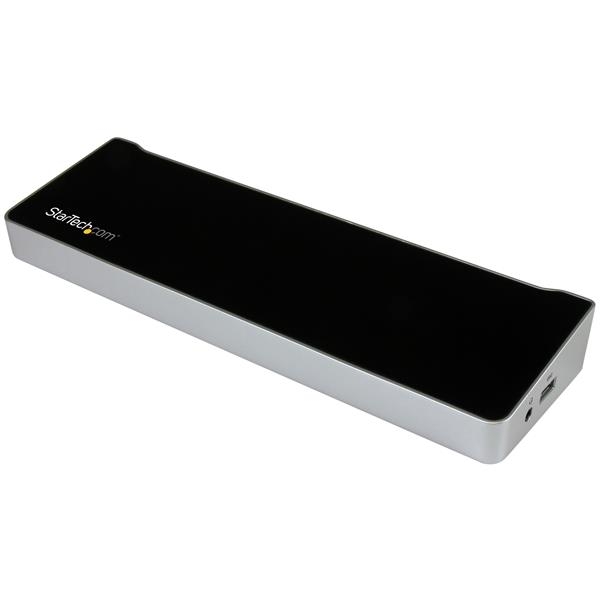

This USB-C™ docking station for MacBook and Windows® laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The triple 4K docking station supports Ultra HD 4K resolution on two DisplayPort monitors (at 60Hz), and on one HDMI monitor (at 30Hz).

The docking station also features 60W USB Power Delivery 2.0, so you can power and charge your MacBook or Windows-based USB-C or Thunderbolt 3 laptop as you work while powering your peripherals, using the included 120W power adapter. Through just one USB Type-C™ cable, the dock also provides access to a wired network and five USB ports. It’s a must-have accessory for your MacBook Pro, Chromebook Pixel, Dell™ XPS 15, or other USB-C enabled laptop.  The dock can also be connected to a USB-A port on laptops (using a USB-C to A cable such as the USB315AC1M, sold separately), but only dual display is supported, and Power Delivery to charge your laptop is not available through USB-A.

Connect three 4K monitors to your Mac or Windows laptop

Enhance productivity with a triple-4K video workstation

This premium docking station lets you create a multi-monitor Ultra HD workstation with three monitors, even if your laptop video card doesn't natively support it.

With the triple-monitor dock, you can connect:

  • 2x 4K DisplayPort displays at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz
  • 1x 4K HDMI displays at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

The USB-C dock offers a fast and easy way to maximize your laptop’s workable screen space, giving you four screens in total when coupled with your laptop’s display.

5K support for a single display

For high resolution, graphic-intensive applications, the dock can also be used to connect a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort video ports to a single 5K display. You can set up a single 5K display or create a dual-monitor workstation, with one 5K display and one 4K HDMI display.

Universally supported

Compatible with both Windows and MacBook computers, this universal laptop dock works with many USB-C enabled laptops. You simply connect to your laptop’s USB-C port to get up and running quickly.

Because the dock uses USB-C, the dock is Thunderbolt™ 3 port compatible, you can connect it to your Thunderbolt 3 equipped laptop. For the MacBook Pro, this docking station provides a strong alternative to Thunderbolt 3 docks, to meet your charging needs and high-quality display requirements.

Maximize the power to your laptop and peripherals

With support for USB Power Delivery 2.0, the docking station powers and charges your laptop, and powers other connected devices, from a single power adapter.

The included 120W power adapter provides up to 60W for charging your MacBook or Windows-based laptop while maximizing the additional power available to all peripherals and devices connected to the dock.

All the connections you need

This triple-video docking station lets you connect your favorite peripherals, to transform your laptop into a powerful, full-sized workstation. With five USB 3.0 ports (4x USB Type-A and 1x USB Type-C), a Gigabit Ethernet port, headset jack, plus separate 3.5 mm audio and microphone ports for multiple audio, you have all the connections you need to maximize performance. The dock also includes a BC 1.2 charging Type-A port for fast charging your smartphone.

The DK30CH2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Connector(s)
Connector Type(s)3.5 mm Mini-Jack (3 Position) Female
3.5 mm Mini-Jack (4 Position) Female
DisplayPort (20 pin) Female
HDMI (19 pin) Female
RJ-45 Female
Security Lock Slot Female
USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female
USB Type-A (9 pin) USB 3.0 Female
USB Type-C (24 pin) USB 3.0 Female
Environmental
Humidity0~95% RH
Operating Temperature0?C to 60?C (32?F to 140?F)
Storage Temperature-20?C to 60?C (-4?F to 140?F)
Hardware
4K SupportYes
Bus TypeUSB-C
Chipset IDDisplayLink - DL-6950
Genesys Logic - GL3523
Texas Instruments - TPS65982
Displays Supported3
Fast-Charge Port(s)Yes
Industry StandardsUSB Power Delivery Specification Rev. 2.0
USB Battery Charging Specification Rev. 1.2
DisplayPort 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Packaging Information
Shipping (Package) Weight1396 g [49.3 oz]
Performance
Auto MDIXYes
Compatible Networks10/100/1000 Mbps
Full Duplex SupportYes
Maximum Data Transfer Rate5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions1x HDMI (DP Alt Mode) - 4096 x 2160p @24Hz / 3840 x 2160p @30Hz
2x DisplayPort (DisplayLink) - 4096 x 2160p @60Hz / 3840 x 2160p @60Hz

1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz

Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Type and RateUSB 3.0 - 5 Gbit/s
UASP SupportYes
Physical Characteristics
ColorBlack & Silver
Enclosure TypePlastic
Product Height34 mm [1.3 in]
Product Length270 mm [10.6 in]
Product Weight385 g [13.6 oz]
Product Width82 mm [3.2 in]
Power
Center Tip PolarityPositive
Input Current2 A
Input Voltage100 ~ 240 AC
Output Current6 A
Output Voltage20V DC
Plug TypeN
Power Delivery60W
Power SourceAC Adapter Included
Software
OS CompatibilityWindows? 7, 8, 8.1, 10
Mac OS? 10.11 to 10.13
Chrome OS?
Special Notes / Requirements
Note4K resolution is supported on all 3 video ports. A 4K-capable DisplayPort display is required to achieve 4Kx2K resolutions
5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions
If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-C to A cable, sold separately, but only dual display is supported, and Power Delivery to charge your laptop is not available through USB-A
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
System and Cable RequirementsUSB-C enabled computer with an available USB Type-C port
What's in the Box
Included in Packagedocking station
instruction manual
universal power adapter (NA/JP, ANZ)
USB-C cable
