Startech Usb-c / Usb 3.0 Docking Station - Universal Laptop Docking Station - Dual 4k - Dual

HDMI Dual DP HDMI & DP 60Hz- Port Replicator DK30A2DH
Special Price $309.00 Regular Price $355.00
SKU:259642
MPN:DK30A2DH Link
Manufacturer:https://www.startech.com/
Brand: Startech
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate

Overview

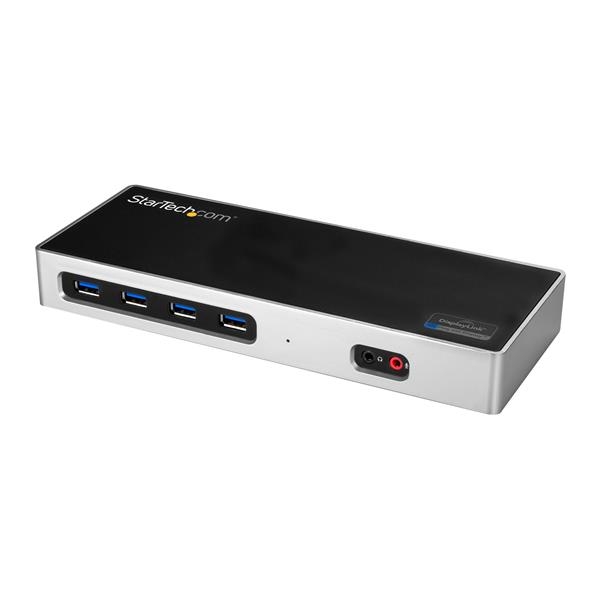

This dual-4K USB 3.0 docking station is the next generation in USB universal docking stations, working with both USB-C and USB-A port equipped laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.

It’s Mac and Windows® compatible, making it the ideal accessory for your MacBook Pro, Dell XPS or other laptop.

Enhance productivity with a dual-4K video workstation

This dual-4K docking station helps improve your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors -- even if your laptop doesn't natively support 4K output. The docking station supports 4K low latency, high-resolution graphics on both video ports, using any combination of HDMI® or DisplayPort monitors.

With the dual-4K dock, you can connect:

  • 2x 4K DisplayPort displays at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz
  • 2x 4K HDMI displays at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz

  • 1x 4K DisplayPort + 4K HDMI displays at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz

The docking station is ideal for producers, graphic and web designers, engineers, architects and many other professionals who work on advanced graphics applications. It offers a fast and easy way to maximize your laptop’s workable screen space, giving you three screens in total when coupled with your laptop’s display.

The truly universal docking station

Compatible with both Windows and MacBook computers, this universal laptop dock supports DisplayLink® technology and works with USB-C and USB-A enabled laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops. DisplayLink graphics technology works across computing platforms and connector types to provide a universal multi-display docking solution. The USB-C connector works seamlessly with DisplayLink to support high-resolution monitors, enabling two full 4Kp60 displays from a single USB connection.

With its universal interface, the docking station can enable a single desktop setup to support different users at different times, no matter what type of computer or device is being used. The universal docking station allows one docking station to be used throughout the organization, for use with the latest Ultrabook™ and MacBook laptops, and Windows Pro tablets as well as older devices.

Providing both full backward compatibility and future proofing, it is the ultimate docking station solution for offices with mixed laptop deployment.

All the connections you need

This USB 3.0 docking station lets you connect the peripherals you need, to transform your laptop into a powerful, fully capable workstation. With six USB 3.0 ports (USB Type-A), a Gigabit Ethernet port, plus separate 3.5 mm audio and microphone ports for multiple audio, you have all the connections you need to maximize performance.

To add laptop charging support for USB-C-equipped laptops, simply add the StarTech.com HB30C1A1CPD USB to USB-C adapter to extend this dock’s versatility.

The DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Hardware
Bus TypeUSB-C
Chipset IDDisplayLink - DL-6950
VIA/VLI - VL813
Displays Supported2
Fast-Charge Port(s)Yes
Industry StandardsUSB Battery Charging Specification Rev. 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0/1.1
Indicators
LED IndicatorsPower
Packaging Information
Shipping (Package) Weight851 g [30 oz]
Performance
Auto MDIXYes
Compatible Networks10/100/1000 Mbps
Full Duplex SupportYes
Maximum Data Transfer Rate5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital ResolutionsSingle display - DisplayPort - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz
Single Display - HDMI - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz
Dual displays - DisplayPort and HDMI - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz
Type and RateUSB 3.0 - 5 Gbit/s
UASP SupportYes
Physical Characteristics
Cable Length152.4 mm [6 in]
ColorBlack & Silver
Enclosure TypeAluminum and Plastic
Product Height28 mm [1.1 in]
Product Length226 mm [8.9 in]
Product Weight301 g [10.6 oz]
Product Width87 mm [3.4 in]
Power
Center Tip PolarityPositive
Input Current1 A
Input Voltage100 ~ 240 AC
Output Current2 A
Output Voltage20V DC
Plug TypeN
Power Consumption (In Watts)40W
Power SourceAC Adapter Included
Software
OS CompatibilityWindows? 7, 8, 8.1, 10
macOS 10.11 to 10.13
Special Notes / Requirements
Note4K resolution is supported on both video ports. A 4K-capable DisplayPort or HDMI display is required to achieve 4Kx2K resolution
A USB-C to USB-C cable and a USB-C to USB-A cable are included.
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
Hardware
Bus TypeUSB 3.0
4K SupportYes
Environmental
Storage Temperature-10?C to 70?C (14?F to 158?F)
Operating Temperature0?C to 40?C (32?F to 104?F)
Humidity10~90% RH
Connector(s)
Connector Type(s)USB Type-C (24 pin) USB 3.0 Female
Microphone Jack
HDMI Female
Ethernet Gigabit Female
DisplayPort Female
9 pin USB 3.0 A Female
3.5 mm Audio
Special Notes / Requirements
System and Cable RequirementsA host laptop with an available USB-C port or a USB-A port.
What's in the Box
Included in Package1 m USB-C to USB-A cable
1 m USB-C to USB-C cable
docking station
quick-start guide
universal power adapter (NA/JP, UK, EU, ANZ)
Marketing TextThis dual-4K USB 3.0 docking station is the next generation in USB universal docking stations, working with both USB-C and USB-A port equipped laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.
PI DateJan 2018
Brand NameStartech
Manufacturer Web Sitehttp://www.startech.com
Product TypeDocking Station
Depth (mm)226.0
Height (mm)28.0
Width (mm)87.0
Weight (Grams)301.0
ColourBlack and Silver
Operating Temperature0 to 40°C
Other Features* Auto MDIX: Yes
* Compatible Networks: 10/100/1000 Mbps
* Full Duplex Support: Yes
System Requirements* A host laptop with an available USB-C port or a USB-A port.
Package Contents* 1 - docking station
* 1 - 1 m USB-C to USB-A cable
* 1 - 1 m USB-C to USB-C cable
* 1 - quick-start guide
Warranty Information3 Years
