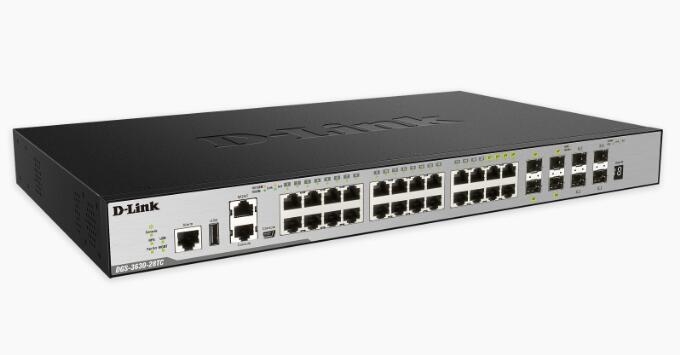

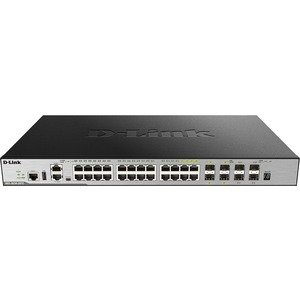

D-link 28-port Gigabit Xstack Layer 3+ Managed Stackable Switch With 24 1000base-t (4 Combo Sfp)

AND 4 10 GBE SFP+ PORTS DGS-3630-28TC
$3,608.00
SKU:264579
MPN:DGS-3630-28TC Link
Manufacturer:https://www.dlink.com.au/
Brand: D-link
Warranty:Standard Manufacturer's Warranty
Availability:

Preorder 2-3 weeks

Fright Estimate

Overview

The DGS-3630 Series Layer 3 Stackable Managed Switches are designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and Internet Service Providers (ISPs). They deliver high performance, flexibility, fault tolerance, and advanced software features for maximum return on investment. With Gigabit Ethernet RJ45 and SFP ports, 10 GbE SFP+ ports, advanced security features, and advanced Quality of Service (QoS), the DGS-3630 switches can operate as core, distribution or access layer switches. High port densities, switch stacking, and easy management make the DGS-3630 Series switches ideal for a wide variety of business networking applications.

Standard and Enhanced Software Images

The DGS-3630 Series switches include the Standard Image (SI) software. For additional functionality, they may be upgraded to Enhanced Image (EI) software with a separately ordered license upgrade. The Standard Image provides core SMB and SME functionality, such as L2 switching, entry-level routing, L2 multicast, advanced QoS, Operations, Administration, and Maintenance (OAM), and robust security features. The Enhanced Image includes all the features from the Standard Image, and adds support for full L3 routing for Enterprise integration, including OSPF, BGP, VRF-Lite and L3 multicast.

This approach allows I.T. managers to deploy a lower cost L2/L2+ solution today, and upgrade to a L3 solution in the future when networking needs change and a full dynamic routing solution is required.

High Availability and Flexibility

The DGS-3630 Series switches support stacking technology, which combines multiple switches to form a single physical1 or virtual stack. This increases redundancy over multiple physical units, simplifies management, and provides a single IP address to manage all members in the stack. Up to nine switches can be stacked using Direct Attach Copper (DAC) or fiber optic cables to make up to 432 Gigabit Ethernet ports available, allowing switching capacity to be increased with demand. The Switch Resource Management (SRM) feature allows the hardware table sizes to be dynamically changed, so that switch functions can be optimized based on the use of the switch. There are three modes: IP Mode, LAN Mode, and L2 VPN Mode. These modes modify the sizes of the Layer 2 and 3 tables for optimum efficiency.

Switch and Link Failover

In addition to traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), the DGS-3630 Series switches also support advanced Ethernet failover redundancy technologies, such as ERPS and FlexLink. Ethernet Ring Protection Switching (ERPS) provides millisecond-level failover in a ring topology. FlexLink offers link failover on designated switch ports, providing link redundancy without STP or LBD.

Security, Performance and Availability

The DGS-3630 Series switches provide a complete set of security features including multi-layer Access Control Lists (ACLs) and 802.1X user authentication via TACACS+ and RADIUS. The DGS-3630 switches also offer extensive VLAN support, including GVRP and 802.1Q VLAN to enhance security and performance. A robust set of QoS features help ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network. The D-Link Safeguard Engine increases the switches’ reliability, serviceability, and availability by preventing traffic flooding caused by malicious attacks.

Versatile Management

The DGS-3630 Series switches can be managed by an industry standard Command Line Interface (CLI), an intuitive web-based Graphical User Interface (GUI), and the D-Link Network Assistant Utility. In addition, support for SNMP allows centralized management of a large number of devices, and out-of-band management is available via a dedicated console port. A mini-USB console port allows the DGS-3630 Series switches to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images. The DHCP auto-configuration and auto-image features can also be used to deploy multiple switches automatically, saving costs with larger deployments.

Power over Ethernet (PoE) Support

The DGS-3630-28PC and DGS-3630-52PC models feature Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable. Both models support the IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, providing up to 30W of power per port. PoE effectively reduces deployment time for devices such as IP cameras, VoIP phones, and access points, and eliminates the cost for additional electrical cabling. Both models feature a 370W PoE power budget which can be increased to 740W when outfitted with the DPS-700 redundant power supply, allowing the switches to power even more devices. Additionally, an extended Link Layer Discovery Protocol (LLDP) automatically negotiates and manages the power feed to IEEE 802.3at PoE+ powered devices for optimal power distribution.

6 kV Surge Protection

The DGS-3630 Series switches feature built-in 6 kV surge protection on all PoE and non-PoE Ethernet access ports. This effectively protects the switches against sudden electrical surges caused events such as lightning strikes or unstable electrical current. Built-in 6 kV surge protection significantly reduces the chances of equipment being damaged from electrical surges, and effectively lowers maintenance costs by minimizing the need for expensive equipment repairs or replacement.

D-Link Green Technology

The DGS-3630 Series switches feature D-Link Green technology, which includes a power-saving mode, smart fan feature, reduced heat dissipation, and cable length detection. The power-saving feature automatically powers down ports that have no link or link partner, and ensures that LEDs are shut off when not needed. The smart fan2 feature allows for the built-in fans to automatically turn on only at a certain temperature, providing continuous, reliable, and ecofriendly operation of the switch.

Lifetime Warranty and NBD Replacement

D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DGS-3630 Series of Layer 3 Stackable Managed Gigabit Switches to further its commitment to product quality and long-term customer confidence. 6

Basic
Brand Name: D-Link
Ethernet Technology: 10 Gigabit Ethernet
Expansion Slot Type: SFP+
Form Factor: Rack-mountable
Layer Supported: 3
Manageable: Yes
Media Type Supported: Twisted Pair
Network Technology: 1000Base-X
Number of Total Expansion Slots: 8
Port/Expansion Slot Details: 10 Gigabit Ethernet
Power Source: Power Supply
Product Family: DGS-3630
Product Type: Layer 3 Switch
Stack Port: Yes
Total Number of Network Ports: 24
General Information
Brand Name: D-Link
Manufacturer Part Number: DGS-3630-28TC
Manufacturer Website Address: http://www.dlink.com.au
Manufacturer: D-Link Systems, Inc
Packaged Quantity: 1
Product Model: DGS-3630-28TC
Product Name: DGS-3630-28TC Switch
Product Series: DGS-3630
Product Type: Layer 3 Switch
I/O Expansions
Expansion Slot Type: SFP+
Number of SFP Slots: 4
Number of SFP+ Slots: 4
Number of Total Expansion Slots: 8
Shared SFP Slot: Yes
Interfaces/Ports
Modular: Yes
Port/Expansion Slot Details: 10 Gigabit Ethernet
Stack Port: Yes
Total Number of Network Ports: 24
Management & Protocols
Manageable: Yes
Media & Performance
Ethernet Technology: 10 Gigabit Ethernet
Media Type Supported: Twisted Pair
Network Technology: 1000Base-X
Miscellaneous
Package Contents:
  • DGS-3630-28TC Switch
  • 1 x Quick Installation Guide
  • 1 x AC power cord
  • 1 x Console cable (RJ45 to RS-232)
  • 1 x Console cable (USB to mini-USB)
  • 1 x Rack mounting kit (two brackets and screws)
  • 4 x Rubber feet with adhesive backing
  • 1 x Power cord retainer set
  • 1 x CD containing the Web UI Reference Guide, CLI Reference Guide, D-View module, and additional software
Network & Communication
Layer Supported: 3
Physical Characteristics
Compatible Rack Unit: 1U
Depth: 259.8 mm
Form Factor: Rack-mountable
Height: 44 mm
Weight (Approximate): 3.74 kg
Width: 441 mm
Power Description
Power Source: Power Supply
Marketing TextThe DGS-3630 Series Layer 3 Stackable Managed Switches are designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and ISPs. They deliver high performance, flexibility, fault tolerance, and advanced software features for maximum return on investment.
PI DateJul 2017
Brand NameD-Link
Manufacturer Web Sitehttp://www.dlink.com
Product ModelDGS-3630-28TC
Product TypeGigabit Ethernet Switch
Switching Fabric128Gbps
Forwarding Rate95.24Mpps
Packet Buffer4MB
Mac Address68K entries
Jumbo Frame Size12000Bytes
Stacking Speed80Gbps
No. of Units per Stack9
Expansion Ports4 x SFP+
Gigabit Ethernet PortYes
No. of Ports20
Type10/100/1000
Console Ports1
SFP Slots4
Output Power42.4Watt
Input Voltage100 - 240Volt
Depth (mm)260.0
Height (mm)44.0
Width (mm)441.0
Weight (Kg)3.7
Layer Support3
Management TypeManaged
Management Features* Telnet Server for IPv4/IPv6 access
* TFTP Client for IPv4/IPv6
* Web-based GUI: Support IPv4/IPv6 access, Support SSL (HTTPS)
* Command Line Interface (CLI)
* Precision Time Protocol (PTP)
Network Technology10/100/1000
MTBF300190hours
VLAN* 802.1Q
* 802.1v Protocol-based VLAN
* Auto Surveillance VLAN
* Subnet-based VLAN
* VLAN Group: Max. 4K VLAN groups, Max. 4094 VIDs
Security Features* Port Security
* Broadcast/Multicast/Unicast Storm Control
* Dynamic ARP Inspection
* D-Link Safeguard Engine
* DHCP Server Screening
* ARP Spoofing Prevention
Quality of Service (QoS)* 802.1p Quality of Service
* Queue Handling
* 8 queues per port
Other Features* 802.3x Flow Control when using Full Duplex
* Auto Surveillance VLAN
* ERPS (Ethernet Ring Protection Switching) version 2
