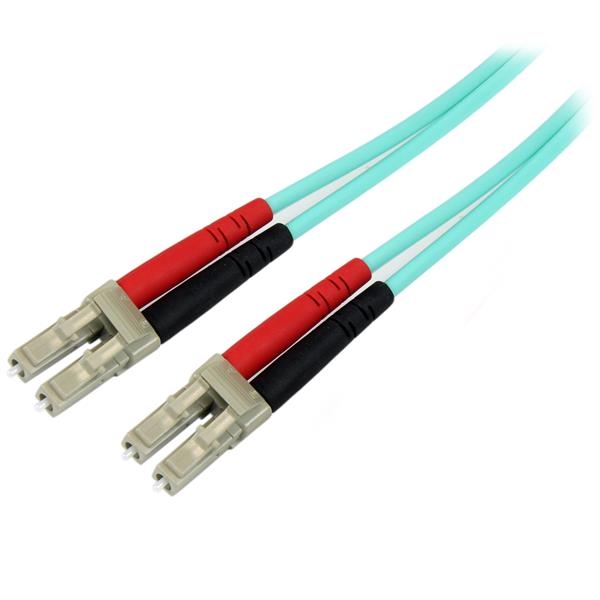

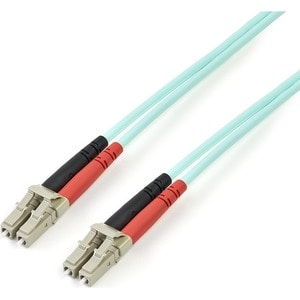

StarTech.com 3m (10ft) Lc/Upc To Lc/Upc OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, Lszh Fiber Jumper Cord - 3m (9.8ft) OM4 Multimode Lc/Lc-Upc Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core W/ Aramid Sheath; Bandwidt
h: 2000MHz·km At 850nm W/ Vcsel Source; Outer Diameter: 2.9mm; Jacket Material: Lszh; Temp Range: -20 To 60°C (-4 To 140°F) 450FBLCLC3
$36.00
| SKU: | 254023 |
|---|---|
| MPN: | 450FBLCLC3 Link |
| Manufacturer: | http://www.startech.com/au |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP plus and QSFP plus transceivers in 40 and 100 Gigabit networks. The OM4 Duplex Multimode Fiber Optic Cable with LC connectors supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources. It is backward-compatible with your existing 50/125 equipment. Fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat in the event of a fire. Compatible with 850nm VCSEL source, the network cable is ideal for use in industrial settings, central offices and schools as well as residential settings where building codes are a consideration. Laser-optimized multimode fiber is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability. More from the Manufacturer
More from the Manufacturer
More from the Manufacturer
Specifications
▼
| Cable Length | 3 m |
| Product Type | Network Cable |
| Brand Name | StarTech.com |
| Cable Characteristic | Patch Cable |
| Cable Type | Fibre Optic |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Fiber Optic Mode | Multi-mode |
| Product Color | Aqua |
| Color Family | Green |
| Manufacturer Part Number | 450FBLCLC3 |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/450fblclc3_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/450fblclc3_rohs.pdf |
| End of Life Manual Availability | Yes |
| REACH free of SVHC | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/450fblclc3_weee.pdf |
| Weight (Approximate) | 48.2 g |
| Shipping Height | 14.99 mm |
| Shipping Width | 199.90 mm |
| Data Transfer Rate | 100 Gbit/s |
| Device Supported | Transceiver, Network Device |
| Jacket Type | LSZH |
| Features | Corrosion Resistant, Halogen Free, Flame Retardant |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Shipping Dimensions | Height 1.3, Width 15, Length 16.5, Shipping Weight 0.05 KG |
Vendor Info
▼
StarTech.com 3m (10ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord - 3m (9.8ft) OM4 Multimode LC/LC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core w/ Aramid Sheath; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F)
