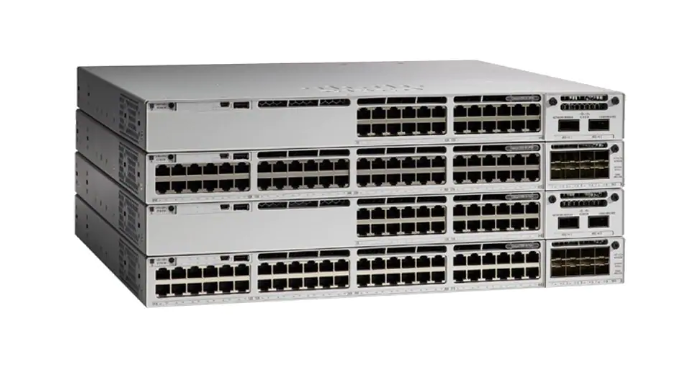

Cisco Catalyst 9300 24-port UPOE Network Advantage C9300-24U-A

$7,035.00
SKU:296655
MPN:C9300-24U-A Link
Manufacturer:https://www.cisco.com
Brand: Cisco
Warranty:Standard Manufacturer's Warranty
Availability:

Preorder 2-3 weeks

Fright Estimate
The Cisco Catalyst 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access
New Page 1
Basic
Product Type: Ethernet Switch
Power Source: Power Supply
Layer Supported: 2
Form Factor: Rack-mountable
Network Technology: 10/100/1000Base-T
Brand Name: Cisco
Manageable: Yes
Ethernet Technology: Gigabit Ethernet
Product Family: Catalyst 9300
Stack Port: Yes
Media Type Supported: Twisted Pair
Total Number of Network Ports: 24
Port/Expansion Slot Details: Gigabit Ethernet
Redundant Power Supply Supported: No
General Information
Product Type: Ethernet Switch
Manufacturer Part Number: C9300-24U-A
Manufacturer Website Address: http://www.cisco.com/c/en_au
Manufacturer: Cisco Systems, Inc
Product Model: C9300-24U
Product Name: Catalyst 9300 24-port UPOE, Network Advantage
Product Line: Catalyst
Product Series: 9300
Brand Name: Cisco
Interfaces/Ports
Modular: No
Uplink Port: Yes
Stack Port: Yes
Total Number of Network Ports: 24
Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
Management & Protocols
Manageable: Yes
Media & Performance
Network Technology: 10/100/1000Base-T
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Twisted Pair
Miscellaneous
Environmentally Friendly: Yes
Network & Communication
Layer Supported: 2
Physical Characteristics
Weight (Approximate): 7.54 kg
Form Factor: Rack-mountable
Height: 43.9 mm
Width: 444.5 mm
Depth: 444.5 mm
Power Description
Power Source: Power Supply
Redundant Power Supply Supported:
Marketing TextThe Cisco Catalyst 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access
PI DateOct 2017
Brand NameCisco
Manufacturer Web Sitehttp://www.cisco.com
Product LineCatalyst
Product ModelC9300-24U
Product TypeSwitch
Switching Fabric208Gbps
Forwarding Rate154.76 Mpps
Packet Buffer16MB
Mac Address32Kentries
Jumbo Frame Size9198Bytes
Stacking Speed480Gbps
Gigabit Ethernet PortYes
No. of Ports24
Type10/100/1000
Console Ports1
Output Power830Watt
Depth (mm)445.0
Height (mm)44.0
Width (mm)445.0
Weight (Kg)7.5
Layer Support2 - 3
Management Features* Element management
* Unified management of wired and wireless networks
Memory8GB
Network Technology10/100/1000
PoE EnabledYes
MTBF238410hours
VLAN* VLAN IDs: 4000
* Per-VLAN Rapid Spanning Tree (PVRST+) allows rapid spanning tree (IEEE 802.1w) reconvergence on a per-VLAN spanning tree basis, providing simpler configuration than MSTP. In both MSTP and PVRST+ modes, stacked units behave as a single spanning tree node.
Security Features* MACsec-256
* Encrypted Traffic Analytics (ETA)
Quality of Service (QoS)* Static QoS configuration and monitoring
* QoS scale entries: 5120
Diagnostics LED* "AC OK": Input power to the power supply is OK
* "PS OK": Output power from the power supply is OK
Multi-Cast Features* Multicast routing scale: 8000
* Multicast DNS (mDNS) gateway
Other Features* Up to 480 Gbps of local stackable switching bandwidth
* Flexible downlink options with 1G and Multigigabit links
* Intelligent Power Management with Cisco StackPower technology, providing power stacking among members for power redundancy
