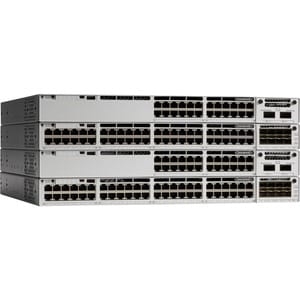

    main product photo

    Cisco Catalyst 9300 48-port PoE+ Network Essentials C9300-48P-E

    $8,397.00
    SKU:296654
    MPN:C9300-48P-E Link
    Manufacturer:https://www.cisco.com/c/en/us
    Brand: Cisco
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    The Cisco Catalyst 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access
    New Page 1
    DIMENSIONS
    Depth (mm): 445.0
    Height (mm): 44.0
    Width (mm): 445.0
    Weight (Kg): 7.6
    OTHER FEATURES
    Layer Support: 2 - 3
    Management Features: * Element management * Unified management of wired and wireless networks
    Memory: 8 GB
    Network Technology: 10/100/1000
    PoE Enabled: Yes
    MTBF: 277770 hours
    VLAN: * VLAN IDs: 4000 * Per-VLAN Rapid Spanning Tree (PVRST+) allows rapid spanning tree (IEEE 802.1w) reconvergence on a per-VLAN spanning tree basis, providing simpler configuration than MSTP. In both MSTP and PVRST+ modes, stacked units behave as a single spanning tree node.
    Security Features: * MACsec-256 * Encrypted Traffic Analytics (ETA)
    Quality of Service (QoS): * Static QoS configuration and monitoring * QoS scale entries: 5120
    Diagnostics LED: * "AC OK": Input power to the power supply is OK * "PS OK": Output power from the power supply is OK
    Multi-Cast Features: * Multicast routing scale: 8000 * Multicast DNS (mDNS) gateway
    Other Features: * Up to 480 Gbps of local stackable switching bandwidth * Flexible downlink options with 1G and Multigigabit links * Intelligent Power Management with Cisco StackPower technology, providing power stacking among members for power redundancy
    PERFORMANCE
    Switching Fabric: 256 Gbps
    Forwarding Rate: 190.48 Mpps
    Packet Buffer: 16 MB
    Mac Address: 32K entries
    Jumbo Frame Size: 9198 Bytes
    PORTS
    Gigabit Ethernet Port: Yes
    No. of Ports: 48
    Type: 10/100/1000
    Console Ports: 1
    Other Ports: 1 x RJ-45 ,1 x USB 3.0
    POWER
    Output Power: 437 Watt
    PRODUCT
    Brand Name: Cisco
    Manufacturer Web Site: http://www.cisco.com
    Product Line: Catalyst
    Product Model: C9300-48P
    Product Type: Switch
    STACKING
    Stacking Speed: 480 Gbps
