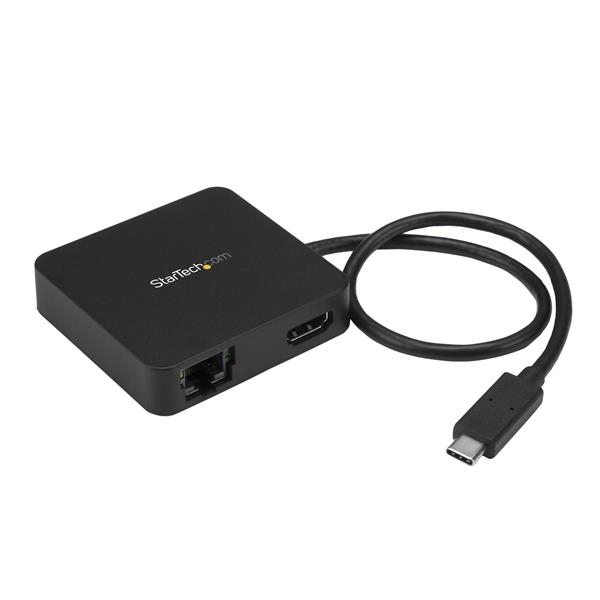

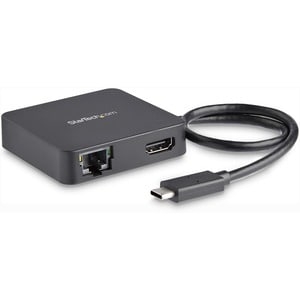

Startech Usb C Adapter - Usb-c Multiport Adapter For Laptops - 4k Hdmi - Gigabit Ethernet - Usb-c
| SKU: | 255584 |
|---|---|
| MPN: | DKT30CHD Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Expand the connectivity of your USB-C™ equipped laptop, wherever you go. With this USB-C™ adapter, you can create a powerful workstation, providing support for an Ultra HD 4K monitor, a wired network connection, USB-A device and a USB-C device.
Ideal for mobile use, the USB-C multiport adapter is the perfect accessory for your Dell™ Precision, Dell XPS, MacBook or other USB Type-C™ laptop. Since it uses USB-C, the adapter is Thunderbolt™ 3 port compatible, to connect to your Thunderbolt 3 equipped laptop.
Create a powerful workstation
When coupled with your laptop, this USB-C adapter makes it easy to set up a dual-monitor workstation. It offers an HDMI® port that supports 4K Ultra HD 4096 x 2160p with audio to connect a high-resolution monitor, plus it supports 3840 x 2160p resolution. When traveling, you can use an HDMI port-equipped television in a hotel room as a second display. The travel adapter is also ideal for quick setups in conference rooms or boardrooms, to deliver engaging presentations.
Gain reliable network access
The USB-C multiport adapter ensures reliable wired network access with a Gigabit Ethernet port, which is ideal for areas with limited Wi-Fi® access such as in classrooms, office buildings and hotels.
Connect your USB devices with ease
The multiport adapter provides a versatile way to connect USB devices to your port-limited laptop. Connect an existing device, like your mouse or a flash drive, to the USB Type-A port. With the USB-C port, you are future-ready to add a USB-C device.
Designed for easy portability
The bus-powered multiport adapter is portable and compact, tucking easily your laptop bag. Since it consolidates multiple ports into a single adapter, you don’t need to bring along multiple single-function adapters. The adapter also features a built-in USB-C cable, which means one less cable to carry. Installation is fast and simple, with native support in most operating systems.
The DKT30CHD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specifications
| Connector(s) | |
| Connector Type(s) | HDMI (19 pin) Female |
| RJ-45 Female | |
| USB Type-A (9 pin) USB 3.0 Female | |
| USB Type-C (24 pin) USB 3.0 Female | |
| USB Type-C (24 pin) USB 3.0 Male | |
| Environmental | |
| Humidity | 5~90% RH (Non-condensing) |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| 4K Support | Yes |
| Bus Type | USB-C |
| Chipset ID | Genesys Logic - GL3523 Realtek - RTL8153 Parade - PS176 |
| Displays Supported | 1 |
| Fast-Charge Port(s) | No |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.4 lb] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Physical Characteristics | |
| Cable Length | 340 mm [13.4 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 15 mm [0.6 in] |
| Product Length | 65 mm [2.6 in] |
| Product Weight | 52 g [1.8 oz] |
| Product Width | 62 mm [2.4 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? 7, 8, 8.1, 10 Mac OS 10.10 to 10.13 Chrome OS? |
| Special Notes / Requirements | |
| Note | A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K). |
| Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode. | |
| The USB Type-C connector (female) is data only. | |
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. | |
| System and Cable Requirements | Host laptop with an available USB-C port (to ensure full functionality, the laptop's USB-C port must support DP alt mode). |
| What's in the Box | |
| Included in Package | quick-start guide |
| USB-C multiport adapter | |
