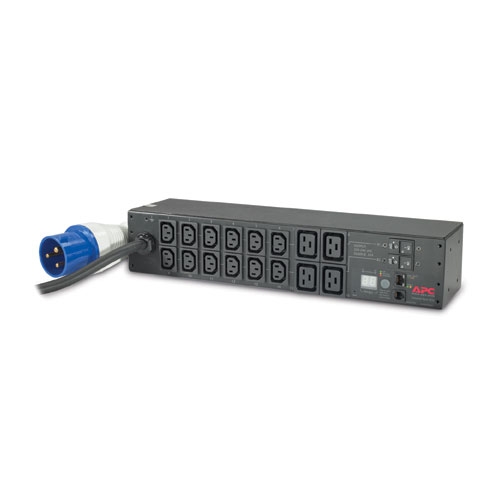

Rack Pdu. Metered. 2U. 32A. 230V. (12) C13 (4) C19 AP7822B
$1,487.00
| SKU: | 250277 |
|---|---|
| MPN: | AP7822B Link |
| Manufacturer: | http://www.schneider-electric.com.au |
| Brand: | Apc |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers.
Specifications
▼
| Product Type | PDU |
| Output Voltage | 230 V AC |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | IEC 60309 32A 2P+E |
| Receptacle Type | IEC 60309 C13, IEC 60320 C19 |
| PDU Type | Metered |
| Receptacle Detail | 12 x IEC 60309 C13, 4 x IEC 60320 C19 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Manufacturer Part Number | AP7822B |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU, Metered, 2U, 32A, 230V, (12) C13 & (4) C19 |
| Package Contents | • Rack PDU, Metered, 2U, 32A, 230V, (12) C13 & (4) C19 • Cord Retention Bracket(s) • Installation Guide • Rack Mounting Brackets • User Manual |
| Environmentally Friendly | Yes |
| Weight (Approximate) | 3.36 kg |
| Height | 88 mm |
| Width | 444 mm |
| Depth | 112 mm |
| Plug/Connector Detail | 1 x IEC 60309 32A 2P+E |
| Shipping Dimensions | Height 14, Width 37, Length 51, Shipping Weight 6.68 KG |
