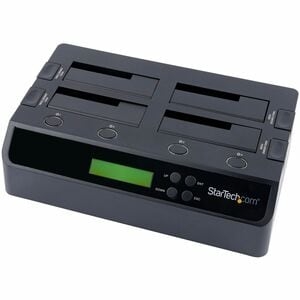

Startech 4 Bay Usb 3.0 Esata To Sata Standalone 1:3 Hdd Hard Drive Duplicator Dock Satdock4u3re

$802.00
SKU:256518
MPN:SATDOCK4U3RE Link
Manufacturer:https://www.startech.com/
Brand: Startech
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate

The SATDOCK4U3RE USB 3.0 and eSATA 1-to-3 Hard Drive Duplicator docking station enables you to duplicate/clone a single SATA hard drive to up to three other SATA drives simultaneously, as a standalone device. The duplicator can also function as a regular 4-bay hard drive docking station, by connecting to a host computer system. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives per bay) can be used to greatly enhance your computer's storage/backup capabilities.

Able to perform 1:3 sector duplication, including HPA, from a single SATA drive onto three others simultaneously (at a rate of up to 72 MBps), the duplicator/docking station can save you time and effort. As an external HDD dock, it can be connected to your host computer through USB 3.0 or eSATA, providing data transfer speeds up to 5 Gbps or 3Gbps respectively, from the hard drives to your computer system.

Packaging Information
Shipping (Package) Weight2.7 kg [6 lb]
Performance
Insertion Rating15,000 cycles per bay
Max Drive CapacityCurrently tested with up to 4TB 5400 RPM 3.5" hard drives per bay (16TB total) and 1TB 5400 RPM 2.5" hard drives (4TB total)
Port MultiplierYes
Type and RateSATA II (3 Gbps)
USB 3.0 - 5 Gbit/s
Physical Characteristics
ColorBlack
Enclosure TypePlastic
Product Height96 mm [3.8 in]
Product Length284 mm [11.2 in]
Product Weight1.1 kg [2.4 lb]
Product Width172 mm [6.8 in]
Power
Input Current2.0 A
Input Voltage110V-240V AC
Output Current6.5 A
Output Voltage12 DC
Power Consumption (In Watts)78
Power SourceAC Adapter Included
Software
OS CompatibilityOS independent; No software or drivers required
What's in the Box
Included in Package40-pin IDE Cable
44-Pin to 40-Pin IDE Cable
eSATA Cable
Instruction Manual
Indicators
LED IndicatorsDrive Power/Activity
Hardware
Number of Drives4
Fans60 mm
Drive Size2.5in & 3.5in
Compatible Drive TypesSATA
Chipset IDJMicron - JMB394
JMicron - JMS539
Environmental
Storage Temperature-40?C to 70?C (-40?F to 158?F)
Operating Temperature5?C to 80?C (41?F to 176?F)
Humidity8%~90% RH
Connector(s)
Host ConnectorsUSB Type-B (9 pin) USB 3.0 Female
eSATA (7 pin, Data) Receptacle
Drive ConnectorsSATA Data & Power Combo (7+15 pin) Receptacle
What's in the Box
Included in PackagePackage of Mounting Screws
SATA Duplicator Dock
SATA to IDE Adapter
SP4 to LP4 Power Cable
Universal Power Adapter (NA/JP, UK, EU, ANZ)
USB 3.0 Cable
