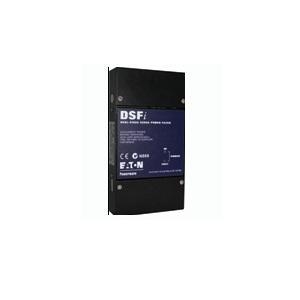

5-32A Dual Stage Surge Filter DSFI
$524.00
| SKU: | 273687 |
|---|---|
| MPN: | DSFI Link |
| Manufacturer: | http://www.eatoncorp.com.au |
| Brand: | Eaton |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
The DSFi provides secondary protection against power surges caused by external sources such as lightning strikes and substation switching as well as providing protection from surge events generated on the secondary side of the filter. Its 3-stage protection unit utilises primary and secondary MOV protection in conjunction with a Low-Q LC filter. In addition, the unit also provide filtering of the line harmonics, noise and RF transmitters.
Specifications
▼
| Product Type | Surge Suppressor/Protector |
| Input Voltage | 250 V AC |
| Surge Energy Rating | 2225 J |
| Brand Name | Eaton |
| Manufacturer Part Number | DSFI |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |
| Product Model | DSFI |
| Product Name | DSFI Surge Suppressor |
| Additional Information | Enclosed in IP24 steel enclosure |
| Compatibility | • Telecommunication System Rectifiers • Process and Control System UPSs up to 6kVA |
| Weight (Approximate) | 1.50 kg |
| Height | 270 mm |
| Width | 145 mm |
| Depth | 47 mm |
| Output Voltage | 250 V AC |
| Maximum Line Current | 32 A |
| Maximum Surge Current | 50 kA |
| Shipping Dimensions | Height 6.2, Width 16.4, Length 29.2, Shipping Weight 1.63 KG |
