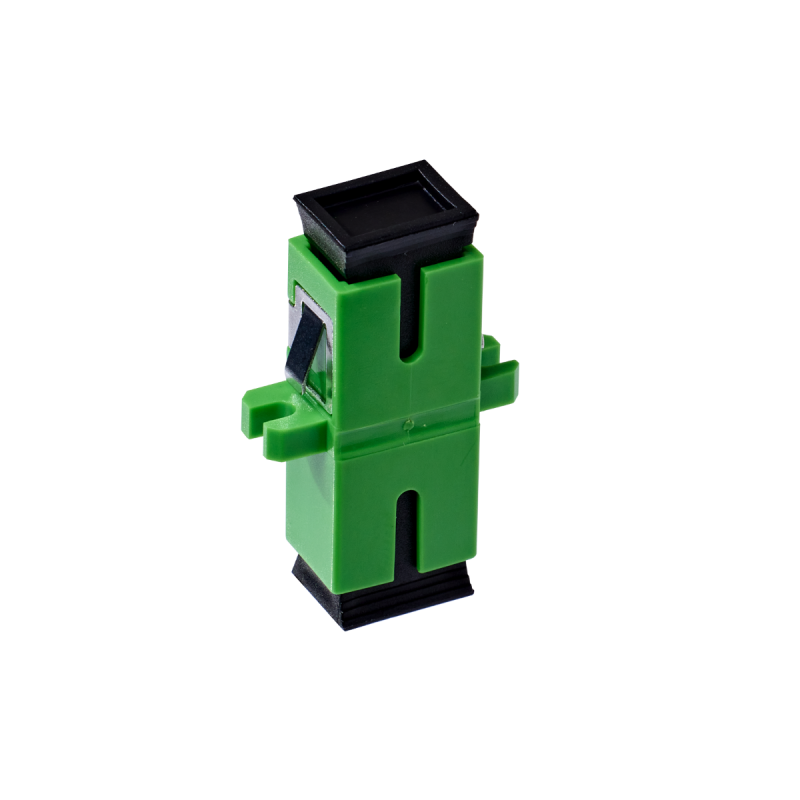

SC/ APC Singlemode Through Coupler SIMPLEX

4Cabling has a range of high-quality SC/ APC adapters which are equipped with high precision alignment sleeves and performance improved reconnect ability

FEATURES
Complies with IEC 61754-4 standard
High precision alignment sleeve
Green adaptor supplied with phosphor bronze sleeve
Low insertion loss and improved reconnect ability
Materials are compliant to RoHS
Simplex adapters
Data centres
Premise installations
Telecommunication networks
Ethernet, Fibre channel, ATM, LAN, MAN and WAN
TEST PROCEDURE
Optical Characteristics
Vibration Test
Thermal Cycling
Impact Resistance
Thermal Aging
Humidity Resistance
and more..
SPECIFICATIONS
Material: Plastic, Zirconia and Stainless steel
Colour: Green
Typical Insertion Loss:<0.1dB
Max Insertion Loss:<0.2dB
Operating Temperature: -40°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Body Dimension L x W x H (mm): 27.5 x 12.8 x 9.3
WARRANTY

3-years limited warranty
