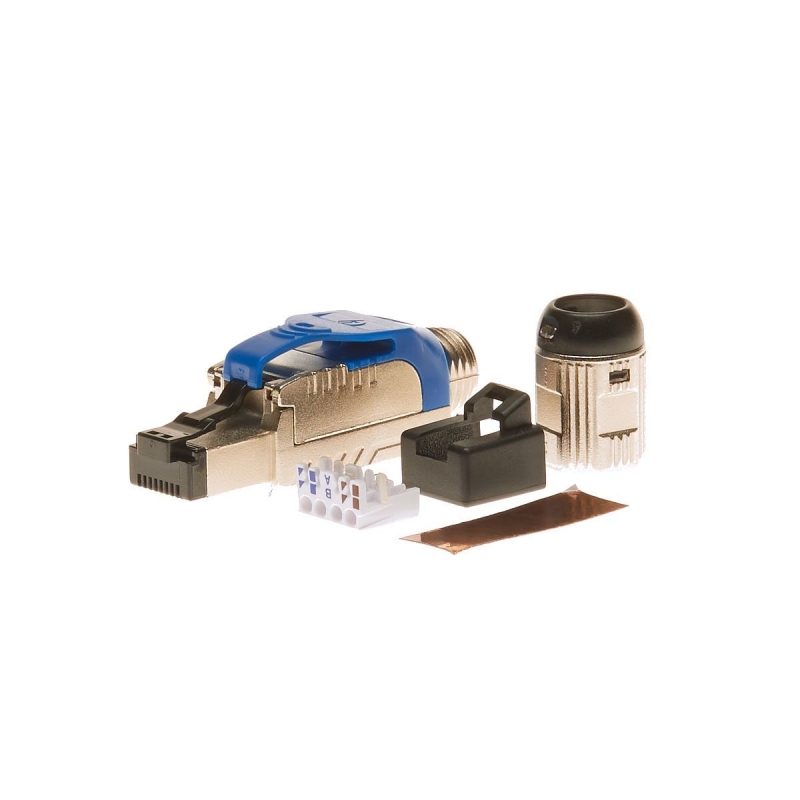

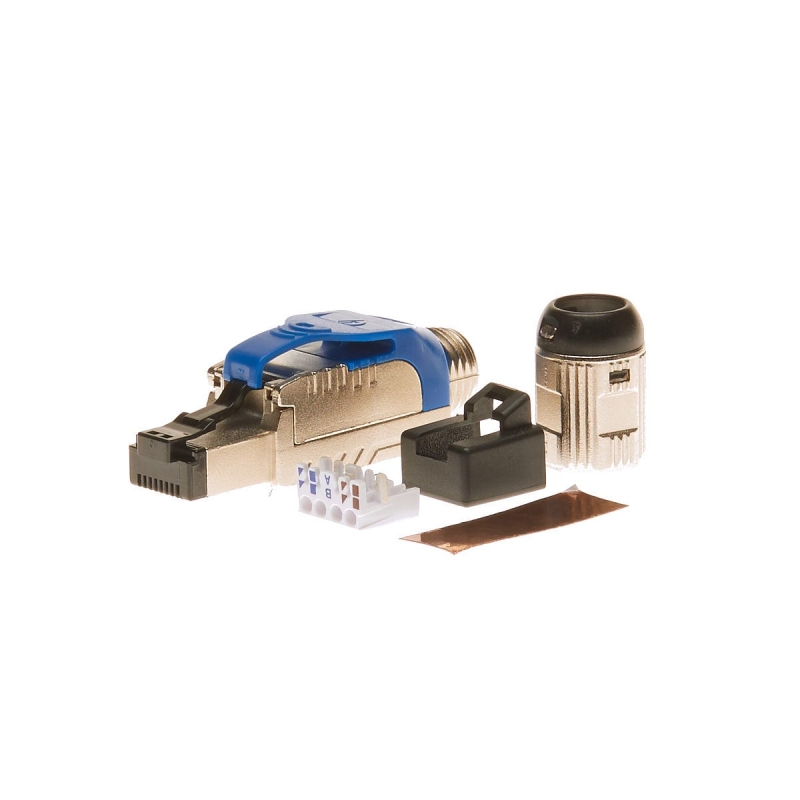

4Cabling CAT6A Shielded Field Termination Toolless Plug

The 4Cabling Shielded Field Termination Plug is designed to terminate CAT6A or CAT7 with a larger diameter 23AWG - 26AWG. Perfect for quick and reliable installation.

Suitable to use with 4Cabling CAT6A Field Termination Plug Crimp Tool and Shielded Ethernet CAT6A S/FTP Cable on Reel w/ PVC Jacket | 305m Roll Blue

FEATURES
Fully Shielded with Zinc Alloy housing to prevent crosstalk
Supports 23AWG - 26 AWG solid or stranded shielded CAT6A cable with an outside diameter between 6.0 and 7.5mm
Open hinged design to simplify termination of shielded cable
MATERIAL
Extractor: PC, UL 94V-2
Housing: Zinc die-casting with Nickel plated
Housing: PC, UL 94V-2
Contact material: Phosphor bronze with 100 micro-inch nickel plated
Contact finish: Min. 50 micro-inch gold plated on surface contact area.
Cover: Zinc die-casting with Nickel plated
Wire management bar: PC, UL 94-V2
Housing: PC, UL 94-V2
Terminal: Titanium copper with tin plated
Grounding contact: Zinc die-casting with Nickel plated
Housing: Zinc die-casting with Nickel plated
SR: PC, UL 94V-2
CAP: PC, UL 94V-2
PCB: UL 94-V0
Dust cap: PE
Foil tape: Copper
PERFORMANCE
T568A & T568B wiring
Insertion force: Max. 30N (IEC 60603-7-5)
Retention strength: 7.7kg between jack and plug
Operating temperature: -10°C to 60C (ISO/IEC 11801. ANSI/TIA 569 C.2)
750 cycles min. (ISO/IEC 11801, ANSI/ TIA 568 C.2)
IDC: Suitable for 23-26AWG stranded and solid wire, min. 20 installation cycles
Suitable for cable jacket OD: 6.0-7.5mm
WARRANTY

3-years limited warranty
