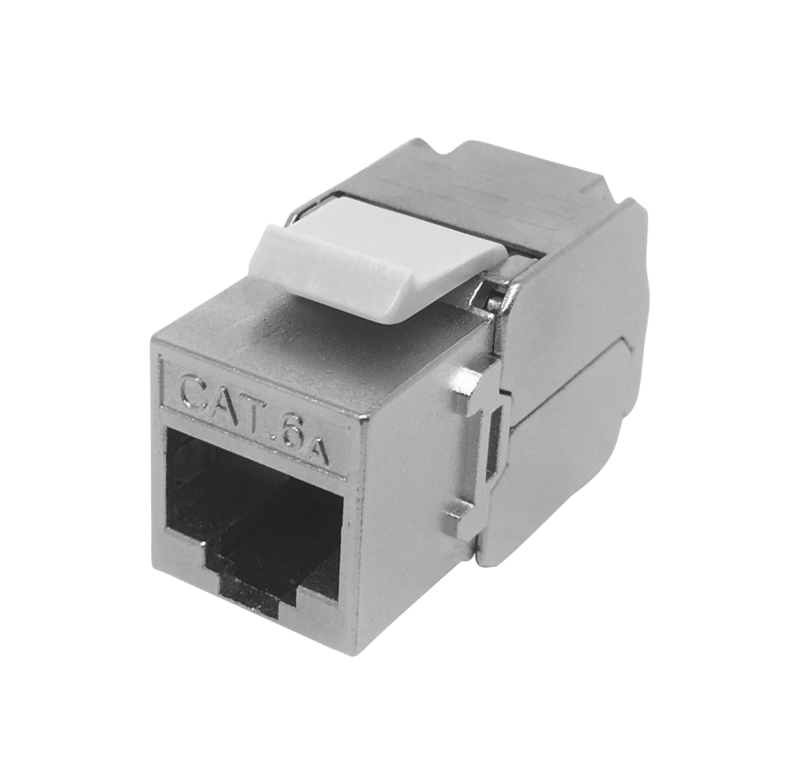

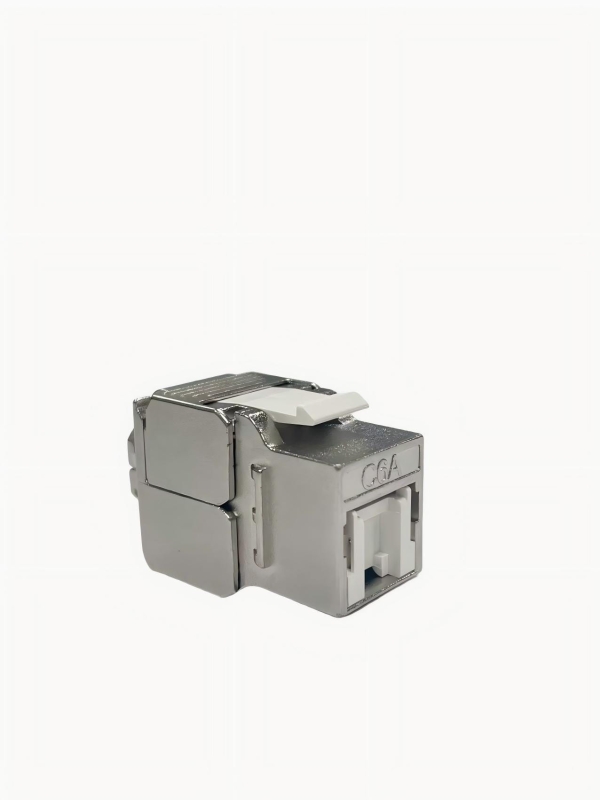

    4cabling Cat 6a Ftp Shielded Keystone Jack 010.005.1005

    $8,211.00
    SKU:259254
    MPN:010.005.1005
    Manufacturer:https://www.4cabling.com.au/
    Brand: 4cabling
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare

    Details

    Cat 6a UTP RJ45 Keystone Jack: 10 PACK

    FEATURES
    • Compatible with keystone face plates.
    • Can be used with Australian HPM and Clipsal plates with the use of a bezel.
    • Wiring 568A.
    • The Cat 6a UTP jack is in compliance with the ANSI/TIA/EIA 568 C standards.
    • Pack of 10
    SPECIFICATIONS
    • Material: PC/ABS, Phosphor Bronze with Nickel plate
    • Contact Area Material: Gold plated
    • IDC Housing Material: ABS
    • Suitable for 23-26 AWG solid core cable
    • Insertion Force: 900gms for 8 contacts
    • The sticker colour codes combine wirings of T568A
    • >Retention Strength: 7.7kgs between Jack and Plug
    • Operation Temperature: -30 C to 60 C
    • Durability: Jack: 750 cycles plug to jack matting and matting; Insertion cycles at 20 cycles/minute max; Contact resistance test per 100 cycles; IDC Max 200 punching times

    WARRANTY

    1 year limited warranty.

    pecifications

    • Material: PC/ABS, Phosphor Bronze with NIckel plate
    • Contact Area Material: Gold plated
    • IDC Housing Material: ABS
    • Suitable for 23-26 AWG solid core cable
    • Insertion Force: 900gms for 8 contacts
    • The sticker colour codes combine wirings of T568A
    • >Retention Strength: 7.7kgs between Jack and Plug
    • Operation Temperature: -30 C to 60 C
    • Durability: Jack: 750 cycles plug to jack matting and matting; Insertion cycles at 20 cycles/minute max; Contact resistance test per 100 cycles; IDC Max 200 punching times
    Cat 6A FTP Shielded Keystone Jack - Toolless 180 degree IDCThis screened keystone jack features a mechanical design tuned to provide optimum signal quality. The tool-less design requires no punch down tool. Terminating shielded modular jack is now so much simpler - it's done in 90 seconds. 4Cabling - making Installation a breeze!For use with shielded Ethernet cable. FEATURES Compatible both T568A and T568B wiring schemesCat6A RJ-45 Jack is engineered to provide full shield protection and reliability, supporting up to Gigabit EthernetTool-free type, easy installationFor shielded Ethernet cable installationCompatible with 24 port applications in 1U, as well as high-density 48 port panelsEasily snaps in and out of patch panels, surface boxes or other applicationsUL Certified & RoHS Compliant50U" gold platingWith two caps in the design, use a punch down or go tool-free WARRANTY1-year limited warranty.WHY 4CABLING?Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking productsISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplierSecure online shopping 24/7A loyal customer base of 100k+ who trust us for their data & electrical needsOver 3000 quality products in stock ready to goAll products are approved as per local Australian standardsWarranty & peace of mind return policyLightning fast delivery nationwideExpert adviceProudly 100% Australian owned & operatedÂ
