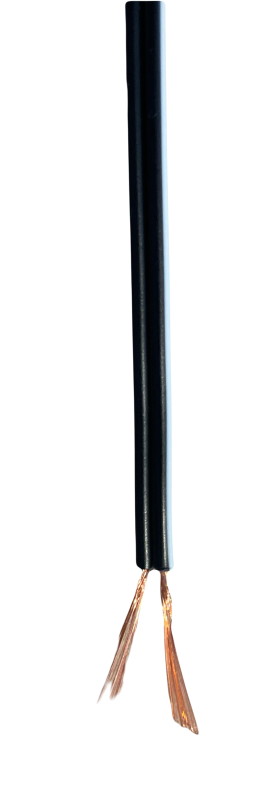

The FIG8 Cable BCF80440-250 is a 2-core, unscreened cable with a PVC sheath, supplied in a 250m length. It features 24 strands of 0.20mm conductors, resulting in a nominal area of 0.75mm² and an amp rating of 7.5Amps. The cable is designed with a parallel webbed construction and has a nominal outer diameter of 2.40 x 5.40mm. It is black with a white trace.



FEATURES

- 2 Cores
- 24/0.20mm construction
- PVC Sheath
- Parallel Webbed

SPECIFICATIONS

- Cable Type: FIG8 Cable
- Size: 24/0.20
- Cores/Pairs: 2 Core
- Screen Type: Unscreened
- Sheath: PVC Sheath
- Conductors: 24 strands of 0.20mm
- Nominal Area: 0.75mm²
- Amp Rating: 7.5Amps
- Insulation Thickness: 0.3mm
- Nominal O/D: 2.40 x 5.40mm
- Conductor Sheath: V75 PVC
- Length: 250m
- Colour: Black/White

WARRANTY
1-Year Limited Warranty
