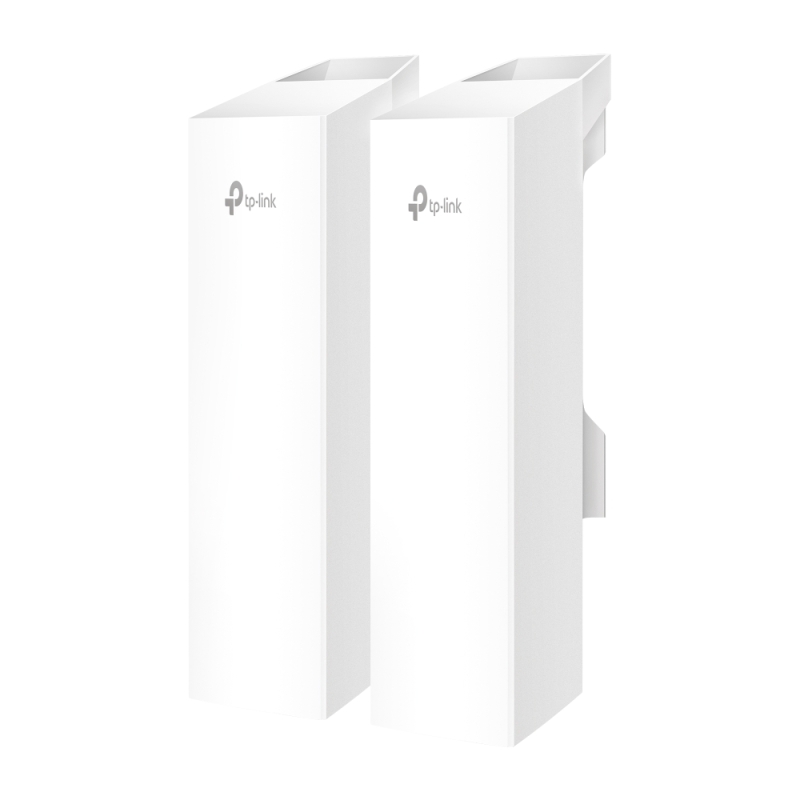

TP-Link | EAP215-Bridge KIT | Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge

Experience exceptional wireless performance and reliability with the TP-Link EAP215-Bridge KIT Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Access Point. With blazing-fast 802.11ac technology, this access point delivers speeds of up to 867 Mbps on the 5GHz wireless data rate, ensuring seamless connectivity for all your high-bandwidth activities.

FEATURES
802.11ac for up to 867Mbps on the 5GHz wireless data rate *1
Ideal for long-range wireless transmission up to 5km *2
Auto-pairing and agile LEDs for efficient deployment
3× Gigabit Ethernet ports for more high-speed IP camera connections
Supports Omada SDN for remote and centralized management
IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability *3
Supports Passive PoE for flexible deployment (adapter included)
SPECIFICATIONS

Hardware Features:

Interface: 3x Gigabit Ethernet Ports
Power Supply: 12V DC / 24V Passive PoE (adapter included)
Dimensions: 224 × 79 × 60mm
Antenna Type: Internal 2×2 Dual-polarized directional MIMO antennas (5GHz: 11.0dBi)
Weatherproof Enclosure: IP65
Mounting: Pole mounting (Accessories included)

Wireless Features:

Coverage: 5000m
Wireless Standards: IEEE 802.11 a/b/g/n/ac
Frequency: 5GHz
Signal Rate: Up to 867Mbps
Wireless Functions:
Mesh, MU-MIMO
Load Balance
Beamforming
Airtime Fairness
Multiple SSIDs
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IP
Wireless Security:
VLAN
Access Control
Rogue AP Detection
Captive Portal Authentication
Maximum number of MAC Filter: 4,000
WPA-Personal/Enterprise
WPA2-Personal/Enterprise

Management:

Omada App: Yes
Restore & Backup: Yes
Firmware update via Web: Yes
NTP: Yes
Centralized Management:
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
SSH: Yes
Web-based Management: Yes
Certification: CE, FCC, RoHS

1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications, along with the number of connected devices, were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.

2. All products are tested in real outdoor environments. Actual range and throughput depend on the transmission power and environmental factors such as wireless interference, obstacles, weather, etc.

3. Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.

4.These functions require the use of an Omada SDN controller.

WARRANTY

1-year limited warranty
