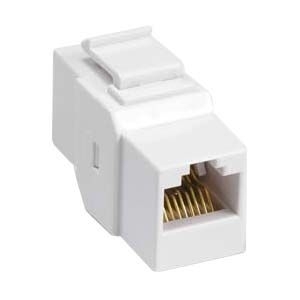

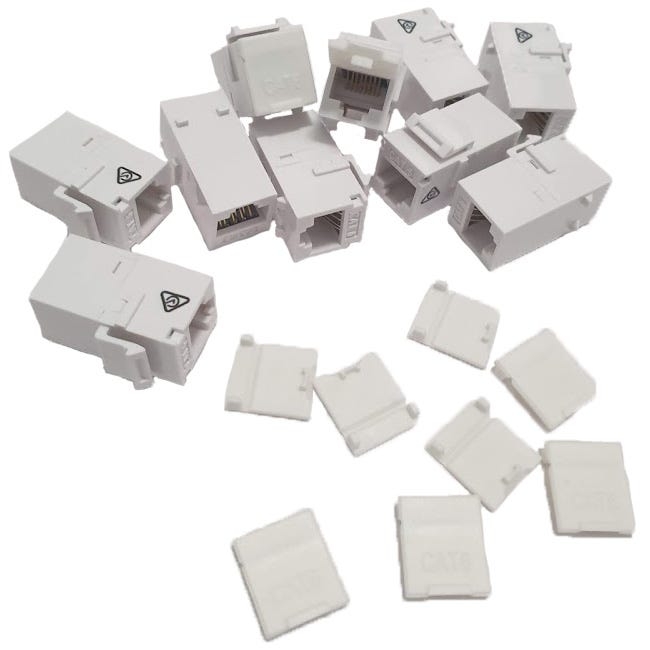

CAT6 RJ45 Snap In Keystone Coupler | 10 Pack White

CAT6 Unshielded Snap In coupler with for use with keystone patch panels or keystone wall plates. The snap-in coupler provides a full range of solution for voice, home networking, audio, video and more.

4Cabling CAT6 UTP snap-in coupler is compliant with Australian Standard AS/CA S008:2010.

FEATURES
RCM compliant
ROHS compliant
For use with CAT6 Ethernet cables
Fit to Australian wall-plates by using a Bezel
Includes optional front cover
The 1-1 wiring configuration is compatible with both T568A and T568B wiring schemes
Allows ready-made CAT6 patch leads to be used in fixed installations eliminating the use of solid cable, IDC terminations and tools
SPECIFICATIONS
Colour: White
Qty in Pack: 10
Socket: RJ45
Housing: ABS plastic
Jack insertion life >750 mating cycles
Operating temperature: -40°C to +60°C
Contact: Phosphor bronze with 50μ gold plating
Dimensions (outer) W16.7 x H22.15 x D30.26mm
WARRANTY

3-years limited warranty
