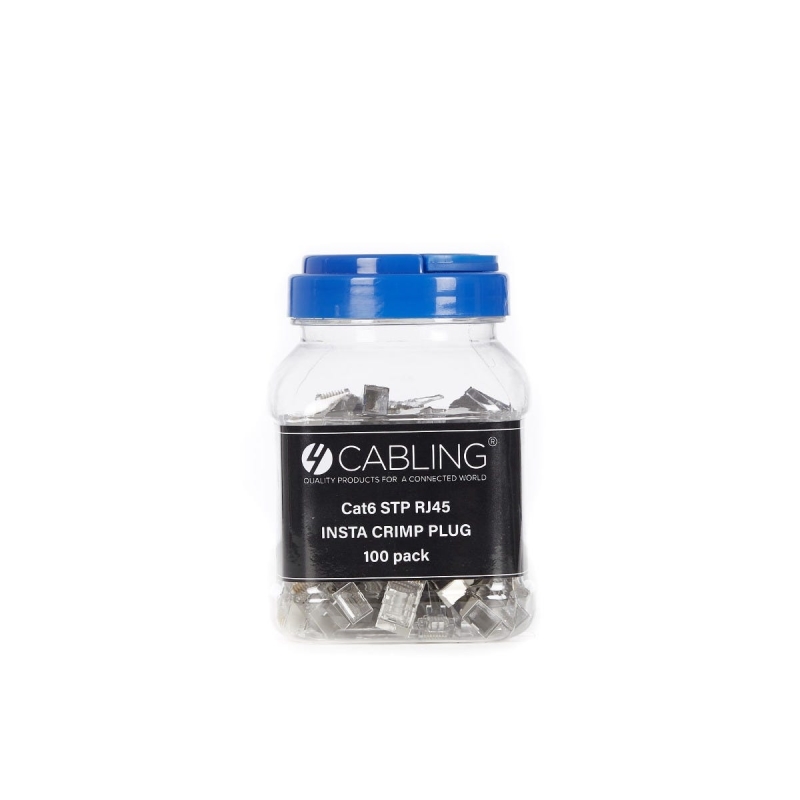

Enhance your network installations with the 4Cabling CAT6 STP RJ45 Insta Crimp Plug. This innovative solution is tailored exclusively for use with the 4Cabling Insta Crimp Tool, ensuring secure and efficient connections with CAT6 Shielded Cables. Simplify the termination process with a design that allows wires to pass through the connector, enabling easy verification and optimal electrical performance.

FEATURES
Designed specifically for 4Cabling Insta Crimp Tool
Facilitates easy and accurate wire verification
Optimised electrical performance with minimal distance between wire twists and contacts
SPECIFICATIONS
RoHS compliant
Contacts plated with 50-micron gold for superior conductivity
Suitable for both solid and stranded core cables
Complies with UL, IEC 60603-7, and FCC standards
Dielectric Withstanding Voltage: 1000V AC
UL applications rated up to 250V at 2Amps
Termination resistance: Max 20mΩ
Insulation Resistance: 100MΩ
INSTALLATION INSTRUCTIONS
Strip the outer cable sheath approx. 30mm
Cut off any separator or nylon string flush with cable sheath being careful not to nick conductors
Fan out 8 wires and arrange in colour code 568A. The 8 wires should be flat and neatly lined up next to one another.
Insert through crimp tool with excess wire protruding out the front
Insert plug into the correct position on the crimping tool
Squeeze the tool firmly, this will terminate the wires and cut off any excess cable length
