    Cisco Catalyst 2960-xr 48 Gige Poe 740w 4x1g Sfp Ip Lite Ws-c2960xr-48fps-i

    $16,631.00
    SKU:242988
    MPN:WS-C2960XR-48FPS-I Link
    Manufacturer:http://www.cisco.com/
    Brand: Cisco
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare

    Product Overview

    Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.

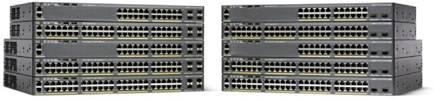

    Figure 1.      A Cisco Catalyst 2960-X Series Switch Family

    Product Highlights

    Cisco Catalyst 2960-X switches feature:

    ●   24 or 48 Gigabit Ethernet ports with line-rate forwarding performance

    ●   Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks

    ●   FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional)

    ●   Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget

    ●   24-port PoE fanless switch for deployment outside the wiring closet

    ●   Reduced power consumption and advanced energy management features

    ●   USB and Ethernet management interfaces for simplified operations

    ●   Application visibility and capacity planning with integrated Full (Flexiable) NetFlow and NetFlow-Lite

    ●   LAN Base or LAN Lite Cisco IOS software features

    ●   Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement

    ●   Identify, classify and control of trusted internal network traffic through Domain Name System as an Authoritative Source (DNS-AS)

    Cisco Catalyst 2960-XR models also offer:

    ●   Power resiliency with optional dual field-replaceable power supplies

    ●   IP Lite Cisco IOS software with dynamic routing and Layer 3 features

    Basic
    Brand Name: Cisco
    Ethernet Technology: Gigabit Ethernet
    Expansion Slot Type: SFP
    Form Factor: Rack-mountable
    Layer Supported: 3
    Manageable: Yes
    Media Type Supported: Twisted Pair
    Network Technology: 10/100/1000Base-T
    Number of Total Expansion Slots: 4
    PoE (RJ-45) Port: Yes
    Port/Expansion Slot Details: Gigabit Ethernet
    Power Source: Power Supply
    Product Family: Catalyst 2960-XR
    Product Type: Ethernet Switch
    Redundant Power Supply Supported: Yes
    Total Number of Network Ports: 48
    General Information
    Brand Name: Cisco
    Manufacturer Part Number: WS-C2960XR-48FPS-I
    Manufacturer Website Address: http://www.cisco.com/c/en_au
    Manufacturer: Cisco Systems, Inc
    Product Line: Catalyst
    Product Model: 2960XR-48FPS-I
    Product Name: Catalyst 2960XR-48FPS-I Ethernet Switch
    Product Series: 2960-XR
    Product Type: Ethernet Switch
    I/O Expansions
    Expansion Slot Type: SFP
    Number of SFP Slots: 4
    Number of Total Expansion Slots: 4
    Interfaces/Ports
    Bypass: No
    LRE Port: No
    Management Port: Yes
    Modular: No
    Number of PoE (RJ-45) Ports: 24
    Number of PoE+ (RJ-45) Ports: 24
    Port/Expansion Slot Details: 4 x Gigabit Ethernet Expansion Slot
    　 48 x Gigabit Ethernet Network
    　 Gigabit Ethernet
    Token Ring Port: No
    Total Number of Network Ports: 48
    USB: Yes
    Management & Protocols
    Manageable: Yes
    Management:
    • Web-based Management
    • VLAN
    • QoS
    • Syslog
    • Telnet
    • RMON I, II
    • SNMP v1, v2c, v3
    • DHCP
    • CLI
    Media & Performance
    Ethernet Technology: Gigabit Ethernet
    Media Type Supported: Twisted Pair
    Network Technology: 10/100/1000Base-T
    Twisted Pair Cable Standard: Category 5
    Memory
    Flash Memory: 128 MB
    Memory Technology: DRAM
    Standard Memory: 512 MB
    Miscellaneous
    System Requirements:
    • Disk space: 200 MB
    • Hardware: PC with 1 GHz
    • Memory: 1 GB
    • PC hardware: 1 GHz
    • Screen Resolution: 1024 x 768
    Operating Systems:
    　
    • Windows 2000 Professional (Service Pack 4 or later)
    • Windows 2003 Server
    • Windows XP Professional (Service Pack 2 or later)
    • Windows Vista Ultimate
    • Windows 7
    • Macintosh OS X
    Network & Communication
    Layer Supported: 3
    Physical Characteristics
    Depth: 406.4 mm
    Form Factor: Rack-mountable
    Height: 44.5 mm
    Weight (Approximate): 6.67 kg
    Width: 444.5 mm
    Power Description
    Input Voltage: 110 V AC
    　 220 V AC
    PoE (RJ-45) Port: Yes
    Power Source: Power Supply
    Redundant Power Supply Supported: Yes
    Reliability
    MTBF: 230860 Hour
