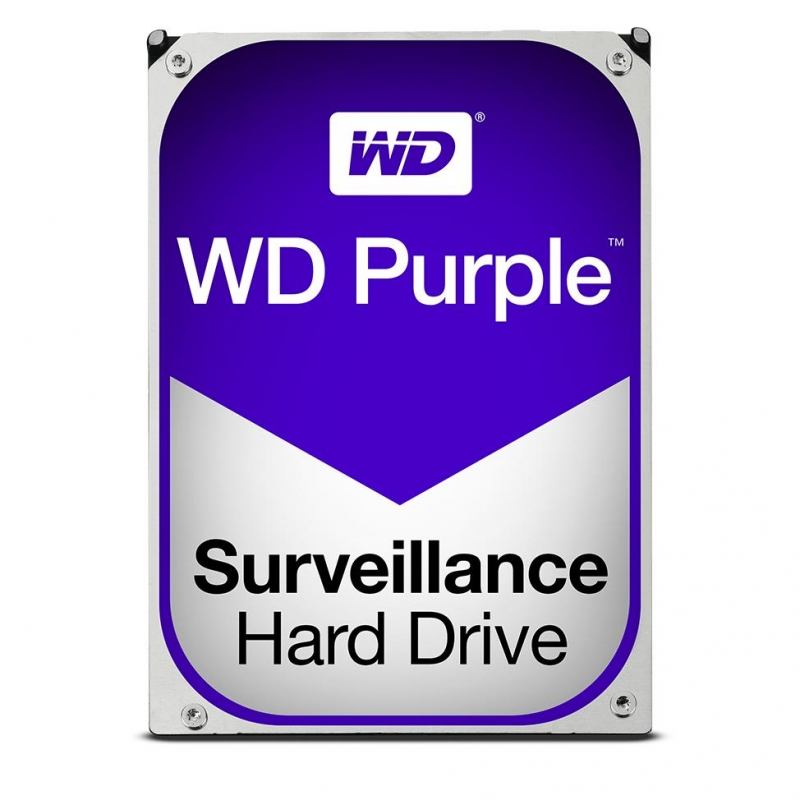

    main product photo

    Western Digital Surveilance 3.5" Drive: 1tb Purple Sata3 6gb/ S Intellipower 64mb Wd10purz

    $77.00
    SKU:245062
    MPN:WD10PURZ Link
    Manufacturer:https://www.wdc.com/
    Brand: Western Digital
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    ULTIMATE STORAGE FOR HOPEFULLY NOTHING

    Built for 24/7, always-on, high-definition security systems. With a supported workload rate of up to 180 TB/yr and support for up to 64 cameras, WD Purple drives are optimized for surveillance systems.
    　

    The Right Drive for the Job

    WD Purple drives have been engineered specifically for the extreme demands of high temperature, 24/7 surveillance systems.
    　

    Performance You Can Trust

    From a worldwide leader in the storage industry, WD Purple is engineered for quality video playback when you need it most.
    　

    Expand Your View to 64

    WD Purple drives are optimized to support up to 64 cameras, giving you flexibility to upgrade or expand your security system.

    SEAMLESS INTEGRATION

    With a wide range of industry-leading enclosures and chipsets supported, you're sure to find the configuration and compatibility that's right for your NVR.
    　



    　

    LESS IS MORE

    Low power consumption is a must in a high-temperature, always-on surveillance environment. IntelliSeek technology helps reduce damaging ambient noise and vibrations.
    　

    DESIGNED FOR SURVEILLANCE

    The WD Purple drive is designed for both DVR and NVR security systems, and is compatible with many of the the leading surveillance and security manufacturers. We can help you find the perfect storage for your system.

    Western Digital 1TB Surveilance Purple - 3.5", SATA III 6Gbs, 64MB Cache, A/V Optimised, 1M-hrs MTBF, 24x7 Availability, IntelliPower.

    General
    Device Type
    Hard drive - internal
    Capacity
    1 TB
    Form Factor
    3.5"
    Interface
    SATA 6Gb/s
    Buffer Size
    64 MB
    Features
    Time-Limited Error Recovery (TLER), Advanced Format technology, HelioSeal, surveillance system compatible, 24x7 availability, Write-Intensive Endurance, AllFrame 4K
    Width
    101.6 mm
    Depth
    147 mm
    Height
    26.1 mm
    Weight
    450 g
    Performance
    Drive Transfer Rate
    600 MBps (external)
    Internal Data Rate
    110 MBps
    Spindle Speed
    5400 rpm
    Reliability
    Non-Recoverable Errors
    1 per 10^14
    Load / Unload Cycles
    300,000
    Expansion & Connectivity
    Interfaces
    1 x SATA 6 Gb/s
    Compatible Bay
    3.5"
    Power
    Power Consumption
    • 3.3 Watt (read)
    • 3.3 Watt (write)
    • 2.9 Watt (idle)
    • 0.4 Watt (standby)
    • 0.4 Watt (sleep)
    Miscellaneous
    Compliant Standards
    RoHS 2002/95/EC
    Localisation
    Worldwide
    Manufacturer Warranty
    Service & Support
    Limited warranty - 3 years
    Environmental Parameters
    Min Operating Temperature
    0 °C
    Max Operating Temperature
    65 °C
    Min Storage Temperature
    -40 °C
    Max Storage Temperature
    70 °C
    Shock Tolerance (operating)
    30 g @ 2 ms
    Shock Tolerance (non-operating)
    250 g @ 2 ms
    Sound Emission
    22 dBA
