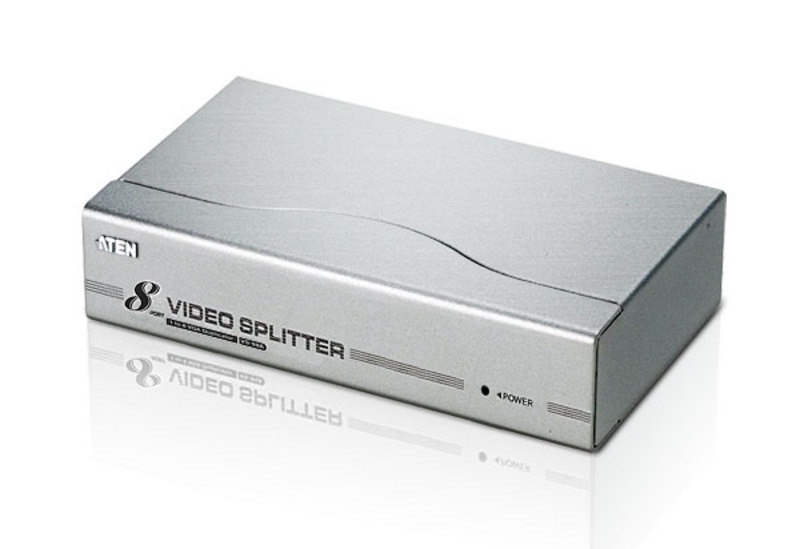

Aten Video Splitter 8 Port VGA Splitter 350Mhz, 1920x1440@60Hz, Cascadable To 3 Levels (Up To 512 Outputs) VS98A-AT-U
$105.00
| SKU: | 271920 |
|---|---|
| MPN: | VS98A-AT-U Link |
| Manufacturer: | https://www.aten.com |
| Brand: | Aten |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
The VS98A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to eight outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 512 displays, and offering bandwidth up to 300 MHz, the VS98A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
Specifications
▼
| Video Input | |
| Interfaces | 1 x HDB-15 Male (Blue) |
| Impedance | 75 Ώ |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 8 x HDB-15 Female (Blue) |
| Impedance | 75 Ώ |
| Video | |
| Max. Bandwidth | 350 MHz |
| Max. Resolution | Up to 1920 x 1440 |
| Max. Distance | Up to 30 m |
| Connectors | |
| Power | 1 x DC Jack |
| Environmental | |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Power Consumption | DC9V:5W:23BTU |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.69 kg ( 1.52 lb ) |
| Dimensions (L x W x H) | 20.00 x 7.51 x 4.40 cm (7.87 x 2.96 x 1.73 in.) |
| Carton Lot | 20 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Vendor Info
▼
Aten Video Splitter 8 Port VGA Splitter 350Mhz, 1920x1440@60Hz, Cascadable to 3 levels (Up to 512 Outputs)
