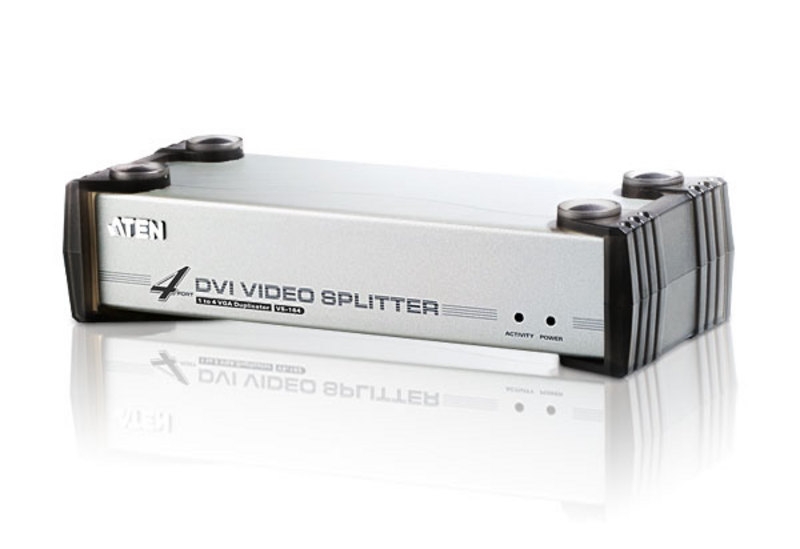

Aten 4 Port Dvi Video Splitter W/ Audio - 1920X1200@60Hz Vs164-At-U
| SKU: | 271914 |
|---|---|
| MPN: | VS164-AT-U Link |
| Manufacturer: | https://www.aten.com/ |
| Brand: | Aten |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
VS164 Video Splitter provides DVI video and audio input signals to 4 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
Package Contents
- 1x 4-Port DVI Video Splitter
- 1x Power Adapter
- 1x User Instructions
- Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
- Fully compliant with DVI-Digital and DVI-Analog.
- Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
- Speaker enabled for audio enjoyment.
- Cascadable to 3 levels - provides up to 64 video signals.
- Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
- Installs in minutes.
- Maintains highest single link video resolution (up to 1920 x 1200).
- DDC, DDC2, DDC2B Compatible (Port 1 only).
- HDCP Compliant.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Specifications
Video Input
Interfaces 1 x DVI-I Female (White)
Impedance 100 Ώ
Max. Distance 1.8 m
Video Output
Interfaces 4 x DVI-I Female (White)
Impedance 100 Ώ
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDCP Compatible
Max. Resolution Up to 1920 x 1200
Max. Distance Up to 5 m
Audio
Input 1 x Mini Stereo Jack Female (Green)
Output 4 x Mini Stereo Jack Female (Green)
Connectors
Power 1 x DC Jack
Power Consumption DC5.3V:3.95W:19BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.90 kg ( 1.99 lb )
Dimensions (L x W x H) 21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.)
Carton Lot 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
