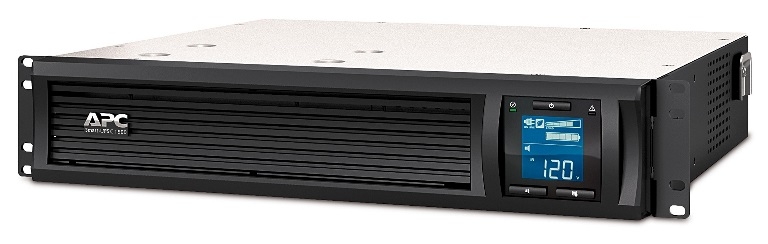

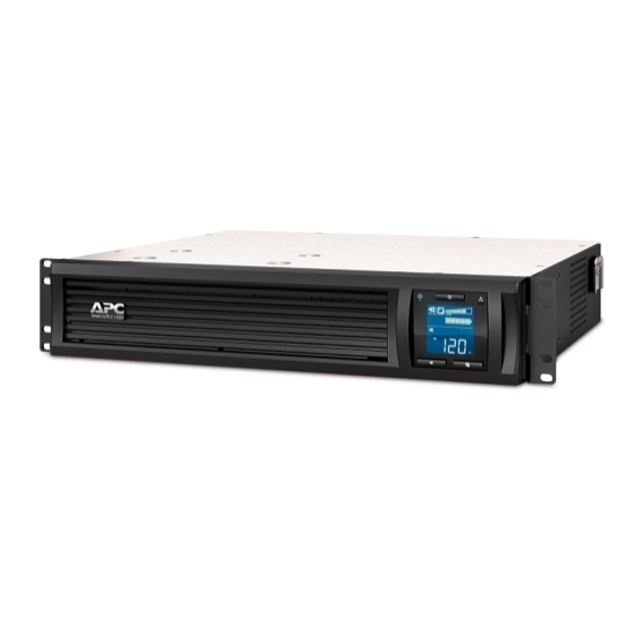

APC Smart-UPS C, Line Interactive, 1500VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 1500VA/900W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 2U rackmount SMC has a SmartConnect port for cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and email notifications with recommended actions. The PowerChute Business Edition provides unattended shutdown of servers and workstations via serial or USB cables.
Run time for load 900 W 10min 4s
Min-max: 90-900 W
Max. Capacity Used100 %
Main Input Voltage 230 V
Other Input Voltage 220 V, 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V 240 V
Rated power in W 900 W
Rated power in VA 1500 VA
Input Connection Type, IEC 320 C14
Output connection type 4 IEC 320 C13, 2 IEC Jumpers
Number of rack unit 2U
Number of cables 1
Battery type Lead-acid battery
Provided equipment- Documentation CD, Installation guide, Rack mounting brackets, USB cable
(power cable not included)
Acoustic level 46 dBA
Heat dissipation 90 Btu/h
Operating altitude 0...10000 ft
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Relative humidity 0…95 %
Storage Relative Humidity 0…95 %

Mounting mode- Rack mounted
Replacement Battery -APCRBC157
Compatible Service bypass panels- SBP16KRMI4USBP3000RMI, SBP5000RMI2U,SBP6KRMI2U, SBP1500RMI
Compatible PDU- AP6003A, AP6009A, AP6015A,AP6020A, AP6031A
Compatible Racks- ACF002, ACF127, ACF202BLK, ACF400, ACF402
Compatible Mounting- AP9625, AR201, NBAC0302
Compatible Spare parts- ACF127, W870-8135
