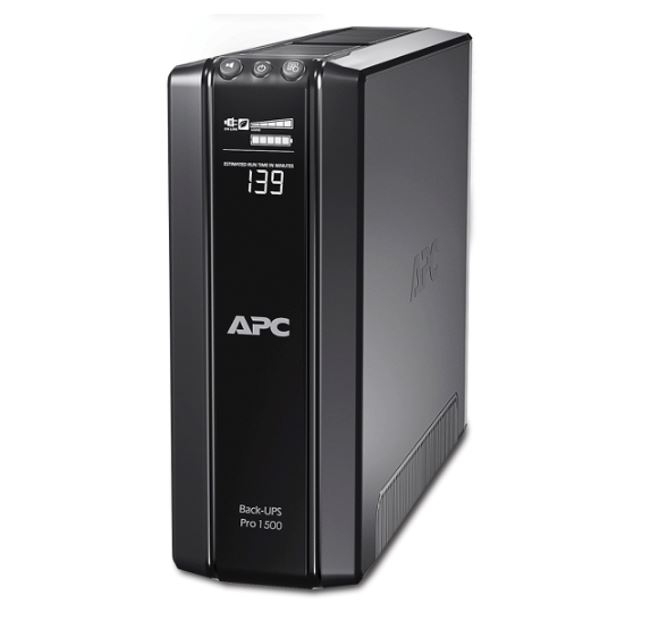

APC Back-UPS Pro 1500VA/865W Line Interactive Ups, Tower, 230V/10A Input, 10x Iec C13 Outlets, Lead Acid Battery, Lcd, Avr BR1500GI
$738.00
| SKU: | 276025 |
|---|---|
| MPN: | BR1500GI Link |
| Manufacturer: | https://www.apc.com |
| Brand: | Apc |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
APC Back-UPS Pro, 1500VA/865W, Tower, 230V, 10x IEC C13 outlets, AVR, LCD, User Replaceable Battery
This product is part of the Back-UPS Pro range. This 1500VA battery backup UPS has 12 total outlets. It features a built-in AVR and a LCD interface with audible alarms. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.
Run time for load 865 W
Min-max: 87-865 W 5min 3s
Max. Capacity Used 100 %
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 865 W
Rated power in VA 1500 VA
Input Connection Type IEC 60320 C13
Output connection type, 5 IEC 60320 C13, 5 IEC 60320 C13 surge, 2 IEC Jumpers
Number of cables 1
Battery type Lead-acid battery
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Input voltage limits 156...300 V adjustable 176...294 V
Switching current capacity 10 A
Maximum configurable power in W 865 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Crest factor 3 : 1
UPS type Line interactive
Wave type Stepped approximation to a sinewave
Maximum configurable power in VA 1500 VA
Transfer time 10 ms typical : 12 ms maximum
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 %
Operating altitude 0...30000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m
Acoustic level 45 dBA
Mounting mode- Not rack mountable
Replacement Battery - APCRBC124, BR24BPG
This product is part of the Back-UPS Pro range. This 1500VA battery backup UPS has 12 total outlets. It features a built-in AVR and a LCD interface with audible alarms. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.
Run time for load 865 W
Min-max: 87-865 W 5min 3s
Max. Capacity Used 100 %
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 865 W
Rated power in VA 1500 VA
Input Connection Type IEC 60320 C13
Output connection type, 5 IEC 60320 C13, 5 IEC 60320 C13 surge, 2 IEC Jumpers
Number of cables 1
Battery type Lead-acid battery
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Input voltage limits 156...300 V adjustable 176...294 V
Switching current capacity 10 A
Maximum configurable power in W 865 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Crest factor 3 : 1
UPS type Line interactive
Wave type Stepped approximation to a sinewave
Maximum configurable power in VA 1500 VA
Transfer time 10 ms typical : 12 ms maximum
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 %
Operating altitude 0...30000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m
Acoustic level 45 dBA
Mounting mode- Not rack mountable
Replacement Battery - APCRBC124, BR24BPG
Specifications
▼
Output
Output power capacity
865Watts / 1.5kVA
Max Configurable Power (Watts)
865Watts / 1.5kVA
Nominal Output Voltage
230V
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Load Crest Factor
3 : 1
Topology
Line Interactive
Waveform type
Stepped approximation to a sinewave
Output Connections
(5) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(5) IEC 320 C13 (selector_surgetitle)
Transfer Time
10ms typical : 12ms maximum
Input
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
176 - 294V
Input voltage adjustable range for mains operation
156 - 300V
Number of Power Cords
1
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
8hour(s)
Replacement Battery
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Extended Run Options
Runtime
Efficiency
Communications & Management
Interface Port(s)
Optional Simple Signalling RS232 cable, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
441Joules
Data Line Protection
Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)
Filtering
Full time multi-pole noise filtering :10% of IEEE surge let-thgouh : zero clamping response time: instantaneous
Physical
Maximum Height
301MM, 30.1CM
Maximum Width
112MM, 11.2CM
Maximum Depth
380MM, 38.0CM
Net Weight
12.7KG
Shipping weight
14.3KG
Shipping Height
387MM, 38.7CM
Shipping Width
238MM, 23.8CM
Shipping Depth
488MM, 48.8CM
Color
Black
Master Carton Units
1.0
Units per Pallet
20.0
SCC Codes
1073130426874 8
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-9000meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
45.0dBA
Conformance
Approvals
A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV
Equipment protection policy
Lifetime : 200000 AUD, Lifetime : 150000 Euros, Lifetime : 75000 GBP
Standard warranty
2 years repair or replace, 3 years repair or replace for European Union countries
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
Vendor Info
▼
APC Back-UPS Pro 1500VA/865W Line Interactive UPS, Tower, 230V/10A Input, 10x IEC C13 Outlets, Lead Acid Battery, LCD, AVR
