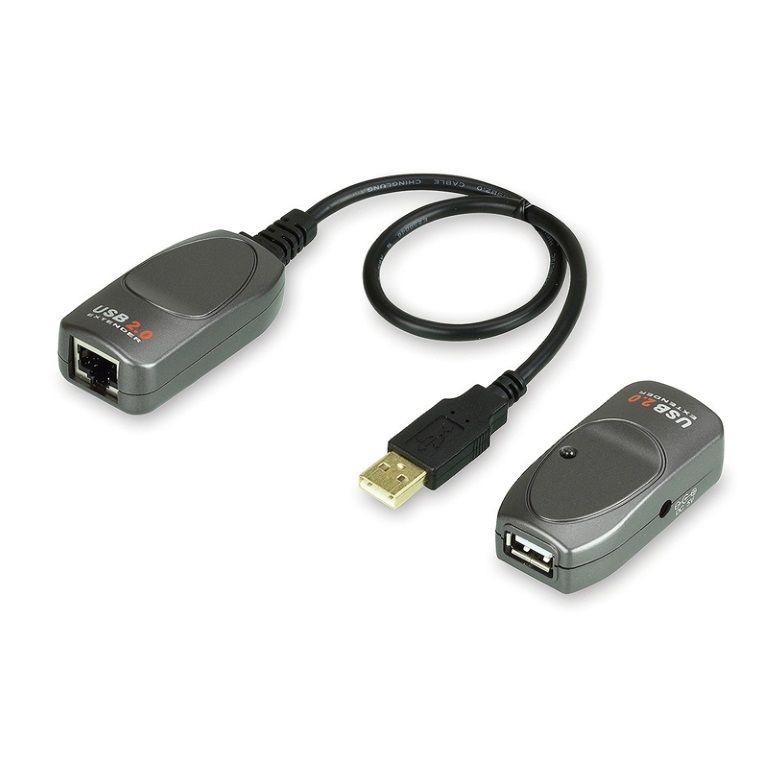

    Aten 1 Port Usb 2.0 Over Cat5 Extender (Up To 60M) Uce260-At-U

    $115.00
    SKU:271896
    MPN:UCE260-AT-U Link
    Manufacturer:https://www.aten.com/
    Brand: Aten
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare
    UCE260 can easily send the USB signals via Cat.5/5e/6 cable up to 60 meters (196 ft) at data rate of High Speed (480Mb/s) , Full Speed (12Mb/s) and Low Speed (1.5Mb/s). Without any configuration or software driver, this USB extender allows you to extend your USB device or hub up to 60m from your computer, which overcomes the typical USB cable limitation.

    Package Contents

    • 1x Local Unit with USB Cable
    • 1x Remote Unit
    • 1x Power Adapter (5V, 2.6A)
    • 1x User Instructions
    • Supports any High-Speed (480Mb/s), full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB devices
    • Extends signal transmission distance of a USB devices up to 60m via a Cat 5/5e/6 cable
    • Includes an AC adapter to stabilize power supply
    • Hot-Pluggable
    • The most cost-effective USB extender solution
    • No additional software driver required
    Function Local Unit Remote Unit
    Connectors
    USB Port 1 x USB Type A Male 1 x USB Type A Female
    Link 1 x RJ45 Female 1 x RJ45 Female
    Power N/A 1 x DC Power Jack
    USB Specification 2.0 For High / Full / Low Speed 2.0 For High / Full / Low Speed
    USB Devices Supported N/A 1 Device
    Power Consumption
    Power Consumption Bus-Powered Self-Powered, 5V, 13W
    Environmental
    Operating Temperature 0–40°C 0–40°C
    Storage Temperature -20–60°C -20–60°C
    Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
    Physical Properties
    Housing Plastic Plastic
    Weight 0.07 kg ( 0.15 lb ) TBD
    Dimensions (L x W x H) 6.30 x 3.10 x 2.19 cm
    (2.48 x 1.22 x 0.86 in.)    		 TBD
    Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
