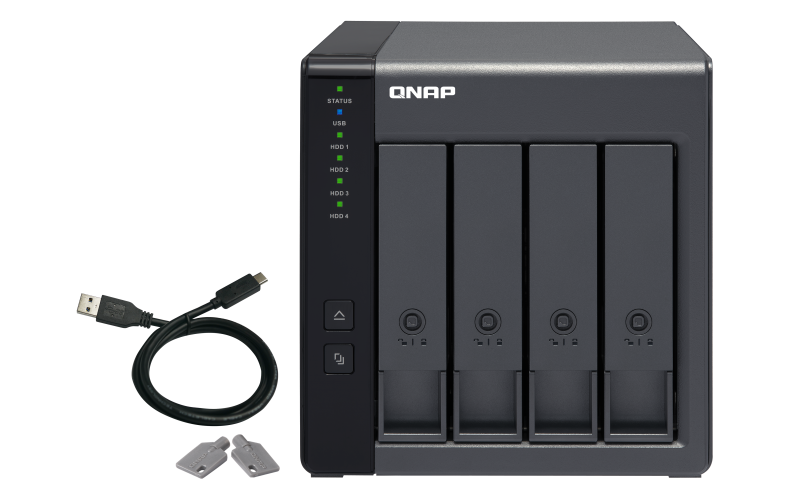

Qnap Tr-004 4 Bay Das(No Disk) Hardware Raid Expansion For Qnap Nas Win Mac Linux Device Tr-004
| SKU: | 274216 |
|---|---|
| MPN: | TR-004 Link |
| Manufacturer: | https://www.qnap.com/ |
| Brand: | Qnap |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
The TR-004 USB 3.0 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-004 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-004 features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.0 Type-C connectivity to bring you a highly reliable and secure storage capacity expansion solution.
-
USB 3.0 Type-C port for faster data transfer.
-
Supports up to four SATA drives for reliable read and write performance
-
Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.
-
Lockable hard drive trays to prevent accidental drive removal.
-
Eject button for disconnecting the TR-004 from a NAS or computer*.
*Requires the QNAP External RAID Manager utility. -
Instantly back up files from the TR-004 to the NAS using the One Touch Copy button**.
**Requires a QNAP NAS with a one touch copy button when in external drive mode. This feature will be supported in 2019 Q2.
Effective storage expansion with RAID Support
The TR-004 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install larger, higher-capacity drives. Featuring four 3.5-inch SATA drive bays and supporting RAID configuration, the TR-004 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.
Supports various RAID levels
The TR-004 supports a variety of RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0, RAID 1/10 or RAID 5. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.
Specifications
| CPU | Micro processor with hardware RAID |
| Drive Bay | 4 x 2.5-inch or 3.5-inch SATA 3Gb/s The system is shipped without HDD. For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported. |
| Hot-swappable | |
| USB 3.0 port | 1 x Type-C USB 3.0 (USB 3.1 Gen 1) |
| Dimensions (HxWxD) | 168.5 × 160.2 × 219 mm |
| Weight (Net) | 1.85 kg |
| Max. number of HDDs/SSDs supported | 4 |
| Hard Drive Type | 4 x 2.5-inch or 3.5-inch SATA 3Gb/s |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | External Power Adapter, 65W, 100-240V |
| Power Consumption: HDD Sleep Mode | 4.17 W |
| Power Consumption: Operating Mode, Typical | 18.21 W With drives fully populated |
| Fan | 1 x 120mm, 12VDC |
| Sound Level | 18.1 db(A) |
