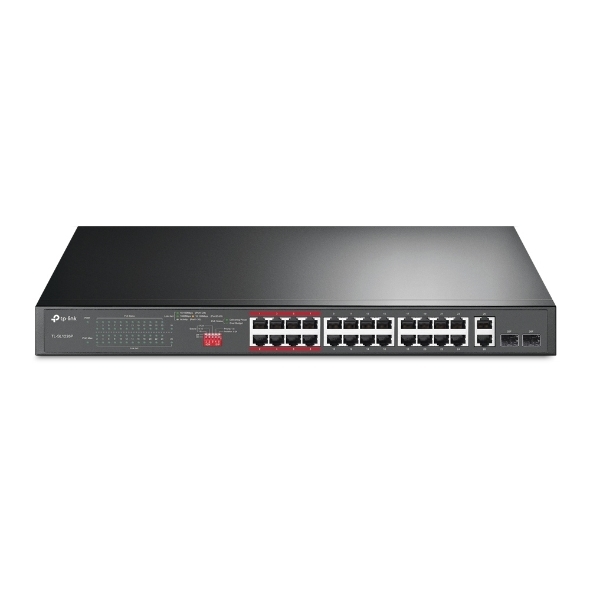

    Tp-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch (TL-SL1226P)

    $291.00
    SKU:293253
    MPN:TL-SL1226P Link
    Manufacturer:https://www.tp-link.com/au/
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    HARDWARE FEATURES
    Interface
  • 24× PoE+ 10/100 Mbps RJ45 Ports

  • 2× 10/100/1000 Mbps RJ45 Ports

  • 2× Combo Gigabit SFP Slots
    		•
    Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)

  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)

  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)

  • 1000BASE-X MMF, SMF
    		•
    Fan Quantity 2 Fans
    Physical Security Lock Yes
    Power Supply 100-240 VAC, 50/60 Hz
    Backup Bandwidth 8.8 Gbps
    PoE+ Ports(RJ45)
  • Standard: 802.3at/802.3af compliant

  • PoE Ports: Port 1 – Port 24

  • PoE Power Budget: 250 W
    		•
    Mac Address Table 8 K
    Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
    Max Power Consumption 18.32 W (220/50 Hz. no PD connected)
    294 W (220/50 Hz. with 250 W PD connected)
    Max Heat Dissipation 62.47 BTU/h (no PD connected)
    1002.54 BTU/h (with 250 W PD connected)
    SOFTWARE FEATURES
    Advanced Features
  • Compatible With IEEE 802.3at/af Compliant PDs

  • Extend Mode (Up to 250m PoE power supply and data transmission)

  • Priority Mode

  • Isolation Mode

  • PD Detection

  • Intelligent Power Supply

  • Mac Address Auto-Learning and Auto-Aging

  • IEEE802.3x Flow Control
    		•
    Transmission Method Store-And-Forward
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents
  • TL-SL1226P

  • Power Cable

  • Installation Guide

  • Two mounting brackets and the fittings
    		•
    Environment
  • Operating Temperature: 0–50 °C (32–122 °F)

  • Storage Temperature: -40–70 °C (-40–158 °F)

  • Operating Humidity: 10–90% non-condensing

  • Storage Humidity: 5–90% non-condensing
    		•
