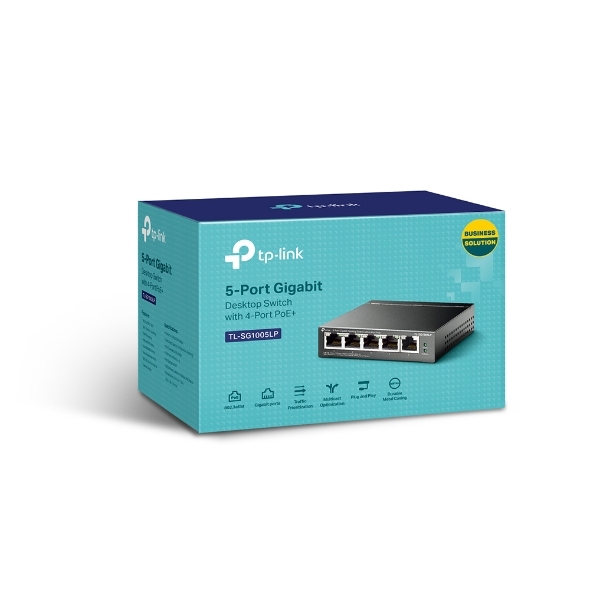

    TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+ (TL-SG1005LP)

    Special Price $75.00 Regular Price $86.00
    SKU:303150
    MPN:TL-SG1005LP Link
    Manufacturer:https://www.tp-link.com/au/
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    New Page 1
    HARDWARE FEATURES
    Interface • 5× 10/100/1000Mbps RJ45 Ports
    • AUTO Negotiation
    • AUTO MDI/MDIX

    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)

    Fan Quantity Fanless
    External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A)
    Packet Forwarding Rate 7.44 Mpps
    PoE Ports (RJ45) • Standard: 802.3 af/at compliant
    • PoE Ports: Ports 1–4
    • Power Supply: 40 W

    Mac Address Table 2K
    Jumbo Frame 16 KB
    Switching Capacity 10 Gbps
    Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
    Max Power Consumption • 4.12 W (220/50 Hz. no PD connected)
    • 47.5 W (220/50 Hz. with 40 W PD connected)
    Max Heat Dissipation • 14.05 BTU/h (no PD connected)
    • 161.98 BTU/h (with 40 W PD connected)
    SOFTWARE FEATURES
    Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE 802.3x Flow Control
    • 802.1p/DSCP QoS
    • IGMP Snooping

    Transfer Method Store-And-Forward
    OTHERS
    Certification FCC, CE, RoHS
    Package Contents • TL-SG1005LP
    • Power Adapter
    • Installation Guide
    Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
