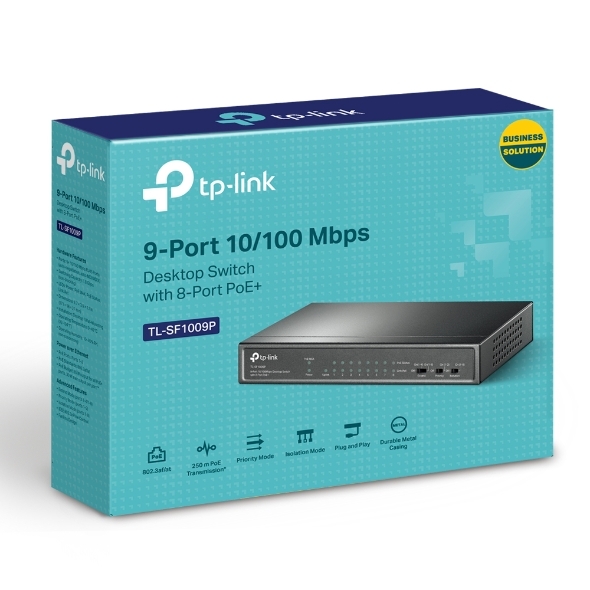

    TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (TL-SF1009P)

    $75.00
    SKU:303149
    MPN:TL-SF1009P Link
    Manufacturer:https://www.tp-link.com/au/
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    New Page 1
    HARDWARE FEATURES
    Interface • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
    • AUTO Negotiation
    • AUTO MDI/MDIX
    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    Fan Quantity Fanless
    Physical Security Lock Yes
    External Power Supply External Power Adapter (Output: 53.5VDC / 1.31A)
    Packet Forwarding Rate 1.3392 Mpps
    PoE Ports (RJ45) • Standard: 802.3 af/at compliant
    • PoE Ports: Ports 1–8
    • Power Supply: 65 W
    Mac Address Table 2K
    Jumbo Frame 2 KB
    Switching Capacity 1.8 Gbps
    Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
    Max Power Consumption • 3.6 (220/50 Hz. no PD connected)
    • 77.08 (220/50 Hz. with 65 W PD connected)
    Max Heat Dissipation • 12.28 BTU/h (no PD connected)
    • 262.84 BTU/h (with 65 W PD connected)
    SOFTWARE FEATURES
    Transmission Method Store-And-Forward
    Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
    • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
    • Priority Mode Button (Ports 1–2)
    • Isolation Mode Button (Ports 1–8)
    • Mac Address Auto-Learning and Auto-Aging
    • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

    OTHERS
    Certification FCC, CE, RoHS
    Package Contents • TL-SF1009P
    • Power Adapter
    • Installation Guide
    Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
