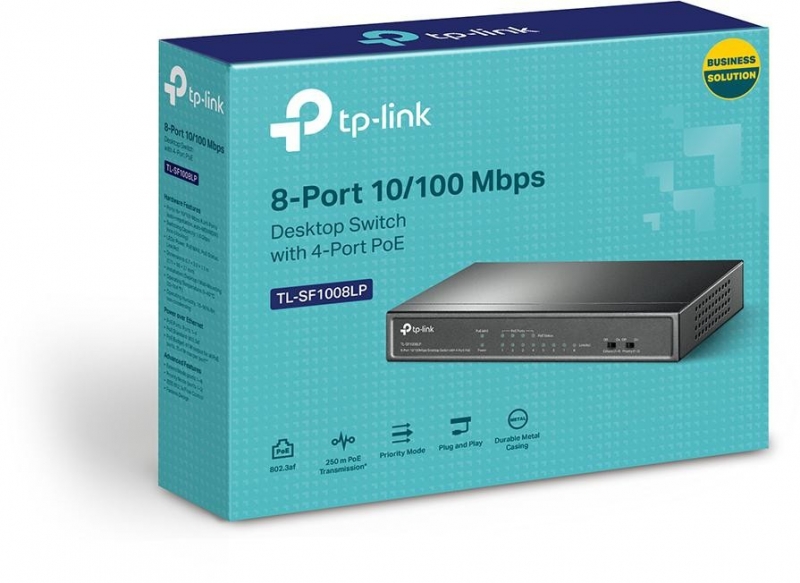

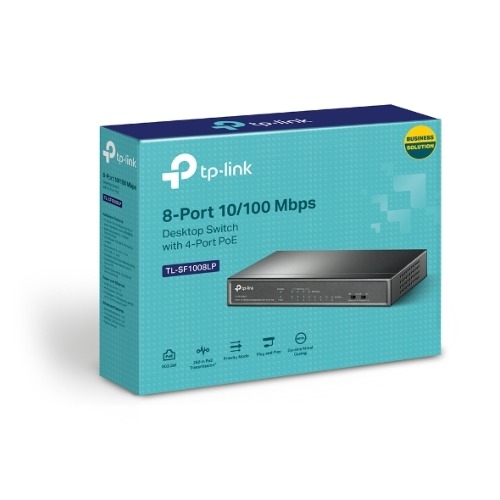

    TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE (TL-SF1008LP)

    $65.00
    SKU:303148
    MPN:TL-SF1008LP Link
    Manufacturer:https://www.tp-link.com/au
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    New Page 1
    HARDWARE FEATURES
    Interface • 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
    • AUTO Negotiation
    • AUTO MDI/MDIX
    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    Fan Quantity Fanless
    Physical Security Lock Yes
    External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
    Packet Forwarding Rate 1.1904 Mpps
    PoE Ports (RJ45) • Standard: 802.3 af compliant
    • PoE Ports: Ports 1–4
    • Power Supply: 41 W
    Mac Address Table 2K
    Jumbo Frame 2 KB
    Switching Capacity 1.6 Gbps
    Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
    Max Power Consumption • 2.2 W (220 V/ 50 Hz. no PD connected)
    • 47.1 W (220 V/ 50 Hz. with 41 W PD connected)
    Max Heat Dissipation • 7.5 BTU/h(no PD connected)
    • 160.61 BTU/h(with 41 W PD connected)
    SOFTWARE FEATURES
    Transmission Method Store-And-Forward
    Advanced Functions • Compatible With IEEE 802.3af Compliant PDs
    • Extend Mode Button (Ports 1–4)
    • Priority Mode Button (Ports 1–2)
    • Mac Address Auto-Learning and Auto-Aging
    • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode

    OTHERS
    Certification FCC, CE, RoHS
    Package Contents • TL-SF1008LP
    • Power Adapter
    • Installation Guide
    Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
