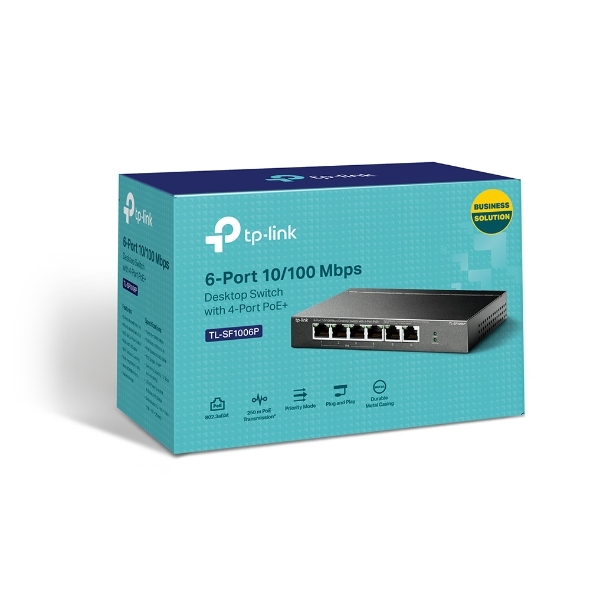

    main product photo

    TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (TL-SF1006P)

    $65.00
    SKU:303147
    MPN:TL-SF1006P Link
    Manufacturer:https://www.tp-link.com/au/
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare
    New Page 1
    HARDWARE FEATURES
    Interface • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
    • AUTO Negotiation
    • AUTO MDI/MDIX

    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)

    Fan Quantity Fanless
    Physical Security Lock Yes
    External Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A)
    Packet Forwarding Rate 0.8928 Mpps
    PoE Ports (RJ45) • Standard: 802.3 af/at compliant
    • PoE Ports: Ports 1–4
    • Power Supply: 67 W

    Mac Address Table 2K
    Jumbo Frame 2 KB
    Switching Capacity 1.2 Gbps
    Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
    Max Power Consumption • 1.9 W (220 V / 50 Hz, no PD connected)
    • 74 W (220 V / 50 Hz, with 67 W PD connected)
    Max Heat Dissipation • 6.48 BTU/h(no PD connected)
    • 252.34 BTU/h(with 67 W PD connected)

    SOFTWARE FEATURES
    Transmission Method Store-And-Forward
    Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
    • Extend Mode Button (Ports 1–4)
    • Priority Mode Button (Ports 1–2)
    • Mac Address Auto-Learning and Auto-Aging
    • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

    OTHERS
    Certification FCC, CE, RoHS
    Package Contents • TL-SF1006P
    • Power Adapter
    • Installation Guide
    Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
