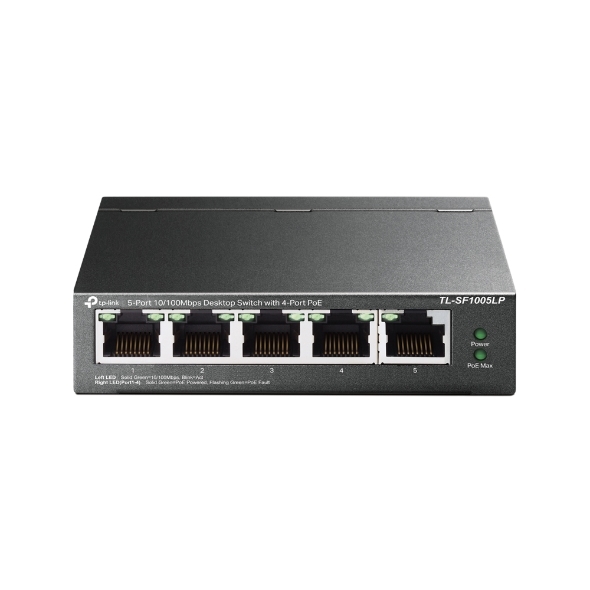

    main product photo

    TP-LINK 5 PORT UNMANAGED DESKTOP SWITCH, 10/100 (5),POE (4),BLACK, 5YR TL-SF1005LP

    $58.00
    SKU:301127
    MPN:TL-SF1005LP Link
    Manufacturer:https://www.tp-link.com
    Brand: Tplink
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare
    New Page 1
    HARDWARE FEATURES
    Interface • 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
    • AUTO Negotiation
    • AUTO MDI/MDIX

    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)

    Fan Quantity Fanless
    Physical Security Lock Yes
    External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
    Packet Forwarding Rate 0.744 Mpps
    PoE Ports (RJ45) • Standard: 802.3 af compliant
    • PoE Ports: Ports 1–4
    • Power Supply: 41 W

    Mac Address Table 2K
    Jumbo Frame 2 KB
    Switching Capacity 1 Gbps
    Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
    Max Power Consumption • 1.9 W (220 V / 50 Hz, no PD connected)
    • 47 W (220 V / 50 Hz, with 41 W PD connected)
    Max Heat Dissipation • 6.48 BTU/h(no PD connected)
    • 160.27 BTU/h(with 41 W PD connected)

    SOFTWARE FEATURES
    Transmission Method Store-And-Forward
    Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
    • Extend Mode Button (Ports 1–4)
    • Priority Mode Button (Ports 1–2)
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

    OTHERS
    Certification FCC, CE, RoHS
    Package Contents • TL-SF1005LP
    • Power Adapter
    • Installation Guide
    Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
    TP-LINK 5 PORT UNMANAGED DESKTOP SWITCH, 10/100 (5),POE (4),BLACK, 5YR
