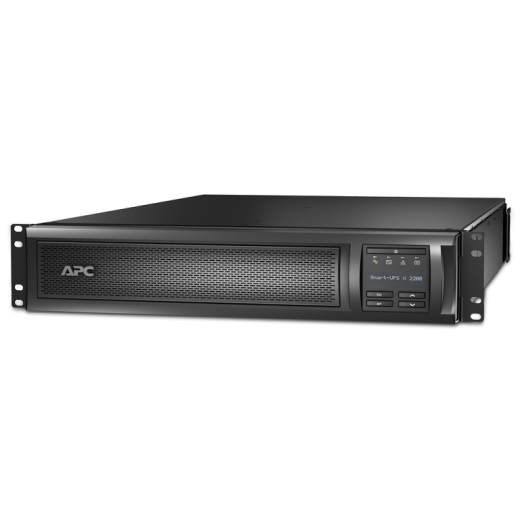

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime

Protect servers, switches, networking devices, and point-of-sale equipment with the APC Smart-UPS X 2200VA. APC Smart-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With premium protection and simplified management, the 2200VA UPS ensures consistent and reliable connectivity at the most critical moments. Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Predictive battery management provides an estimated date of when battery replacement is recommended.
Main Input Voltage 208 V, 230 V
Other Input Voltage 220 V, 240 V
Main Output Voltage 208 V, 230 V
Other Output Voltage 220 V, 240 V
Rated power in W 1980 W
Rated power in VA 2200 VA
Input Connection Type- IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A British
Output connection type 8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19
Number of rack unit 2U
Cable length 1.83 m
Number of cables 1
Battery type Lead-acid battery
Provided equipment- CD with software, Documentation CD, Smart UPS signalling RS-232 cable, User manual, USB cable, Rack mounting brackets
Acoustic level 55 dBA
Heat dissipation 150 Btu/h
Operating altitude 0...10000 ft
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Relative humidity 0…95 %
Storage Relative Humidity 0…95 %

Mounting mode- Rack mounted
Replacement Battery -APCRBC117
Compatible Service bypass panels- SBP16KRMI4U, SBP5000RMI2U
Compatible PDU- AP8702R-WW, AP8702S-WW
Compatible Sensors- AP9335T, AP9335TH
Compatible NMC -AP9613, AP9620, AP9640, AP9641, AP9643, AP9810
Compatible Mounting- AP9625, AR201
