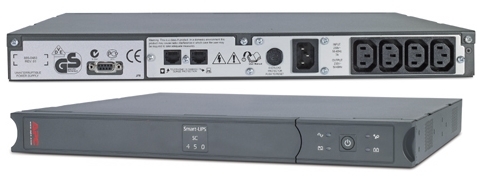

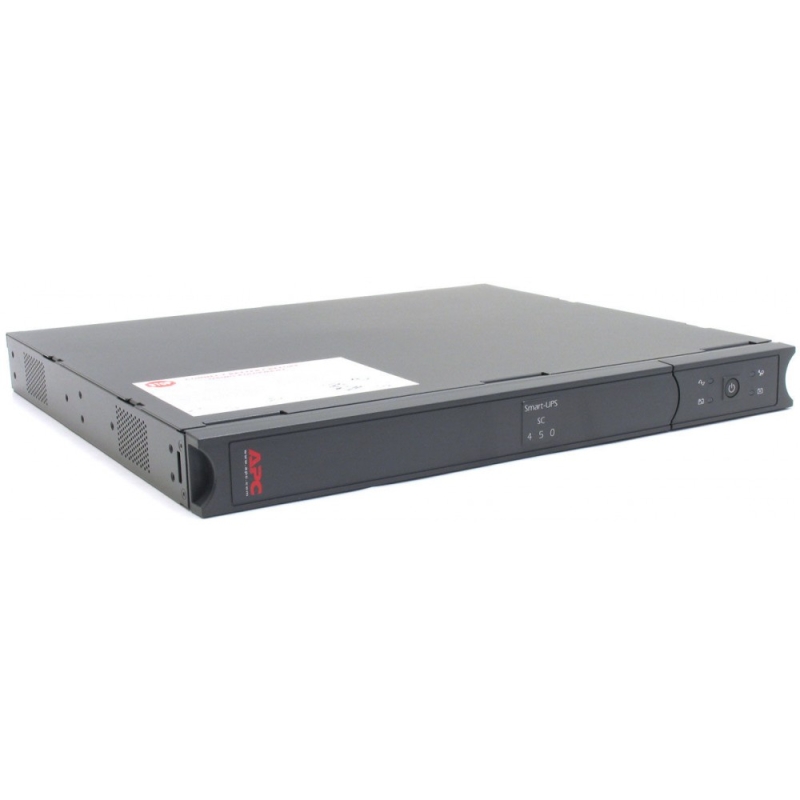

    APC Smart-UPS 450VA/280W Line Interactive Ups, 1U Rackmount, 230V/10A Input, 4x Iec C13 Outlets, Lead Acid Battery SC450RMI1U

    $474.00
    SKU:233912
    MPN:SC450RMI1U Link
    Manufacturer:https://www.apc.com
    Brand: Apc
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower

    This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 450VA/280W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 1U rackmount SC features network grade protection, live swappable batteries, and built-in data line protection. Ideal for networking equipment and POS devices. It conforms to C-Tick, CE, EAC, GOST, TISI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages.
    Main Input Voltage 230 V
    Main Output Voltage 230 V
    Rated power in W 280 W
    Rated power in VA 450 VA
    Input Connection Type IEC 320 C14
    Output connection type- 4 IEC 320 C13, 2 IEC Jumpers
    Number of rack unit 1U
    Battery type Lead-acid battery
    Provided equipment- User manual, Rack mounting brackets, Smart UPS signalling RS-232 cable, CD with software
    Input voltage limits- 151...302 V adjustable, 195...265 V
    Network frequency 50/60 Hz +/- 3 Hz auto-sensing
    Acoustic level 38 dBA
    Heat dissipation 38 Btu/h
    Operating altitude 0...10000 ft
    Ambient air temperature for operation 0…40 °C
    Ambient air temperature for storage -15…45 °C
    Storage altitude 0.00…15240.00 m
    Relative humidity 0…95 %
    Storage Relative Humidity 0…95 %

    Mounting mode- Rack mounted
    Replacement Battery - RBC18
    Compatible PDU- AP6015A, AP7820B, AP7850B, AP7920B, AP7950B, AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW, AP8704S-WW, AP8704S-WWX340, AP8704S-WWX590, AP8706R-WW, AP8706S-WW, AP8706S-WWX340, AP8706S-WWX591, AP9568, AP9870, AP9878
    Compatible Interface connections- 940-0020, 940-0024, AP940-0625A, AP940-1525A, AP9804, AP9815, AP98275

    Output

    • Output power capacity
      280Watts / 450VA
    • Max Configurable Power (Watts)
      280Watts / 450VA
    • Nominal Output Voltage
      230V
    • Output Voltage Distortion
      Less than 5% at full load
    • Output Frequency (sync to mains)
      47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
    • Topology
      Line Interactive
    • Waveform type
      Stepped approximation to a sinewave
    • Output Connections
      (2) IEC Jumpers (Battery Backup)
      (4) IEC 320 C13 (Battery Backup)
    • Transfer Time
      4ms typical : 8ms maximum

    Input

    • Nominal Input Voltage
      230V
    • Input frequency
      50/60 Hz +/- 3 Hz (auto sensing)
    • Input Connections
      IEC-320 C14
    • Input voltage range for main operations
      195 - 265V
    • Input voltage adjustable range for mains operation
      151 - 302V

    Batteries & Runtime

    • Battery type
      Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
    • Typical recharge time
      5hour(s)
    • Replacement Battery
      RBC18
    • Expected Battery Life (years)
      3 - 5
    • RBC Quantity
      1
    • Battery Volt-Amp-Hour Capacity
      108
    • Runtime
      View Runtime Graph
      View Runtime Chart

    Communications & Management

    • Interface Port(s)
      DB-9 RS-232
    • Control panel
      LED status display with On Line : On Battery : Replace Battery and Overload indicators
    • Audible Alarm
      Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
    • Emergency Power Off (EPO)
      Optional

    Surge Protection and Filtering

    • Surge energy rating
      320Joules
    • Data Line Protection
      RJ-11 2-Way Modem/Fax/DSL splitter with protection (four wire dual lines), RJ45 10/100 Base-T Ethernet protection
    • Filtering
      Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449

    Physical

    • Maximum Height
      44mm , 4.4cm
    • Maximum Width
      432mm , 43.2cm
    • Maximum Depth
      383mm , 38.3cm
    • Rack Height
      1U
    • Net Weight
      10.18kg
    • Shipping weight
      11.73kg
    • Shipping Height
      164mm , 16.4cm
    • Shipping Width
      476mm , 47.6cm
    • Shipping Depth
      589mm , 58.9cm
    • Color
      Grey
    • Units per Pallet
      24.0

    Environmental

    • Operating Environment
      0 - 40 °C
    • Operating Relative Humidity
      0 - 95 %
    • Operating Elevation
      0-3000meters
    • Storage Temperature
      -15 - 45 °C
    • Storage Relative Humidity
      0 - 95 %
    • Storage Elevation
      0-15000meters
    • Audible noise at 1 meter from surface of unit
      38.0dBA
    • Online thermal dissipation
      38.0BTU/hr

    Conformance

    • Approvals
      C-tick, CE, GOST, VDE
    • Standard warranty
      2 years repair or replace

    Sustainable Offer Status

    • RoHS
      Compliant
    • PEP
      Available in Documentation tab
    • EOLI
      Available in Documentation tab
    • Other Environmental Compliance
      China RoHS
    APC Smart-UPS 450VA/280W Line Interactive UPS, 1U Rackmount, 230V/10A Input, 4x IEC C13 Outlets, Lead Acid Battery
