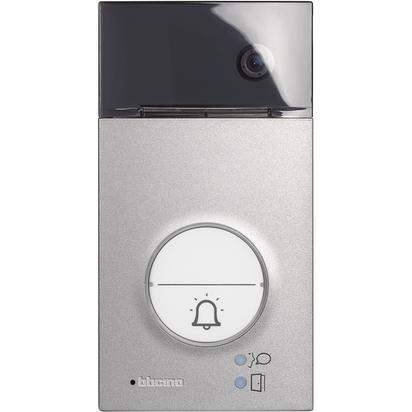

Linea 3000 wall mounted 2-Wires video pushbutton panel with Zamak front cover and wide angle colour camera. Fitted with white LED for the lighting of the shooting field in low light conditions. Can be set up for one or two family installation. It provides the possibility of opening an electrical door lock directly connected to clamps S+ and S- (18 V 4 A impulsive, 250 mA holding current, 30 ohm max). White LED backlit name plate. Protection degree IP54 – protection against mechanical impact IK10.

LINEA 3000 can be configured both for 1 and 2 family house
HIGH installation flexibility with 100mm width, suitable for POLE installation
Hight level applications
Unique design and robust perception
Horizontal and vertical wide viewing field
Door lock release with coloured badges or clear discs, providing additional safety for all residents
Available in kit
Easy 2 wire installation
Wall mount installation
Flush mount accessories sold separately, 350020 or 343061
Rainshield accessory sold separately, 343051, for added protection from the outdoor elements
1 Year Warranty
