INOVONICS S4750 DOOR/WINDOW TRANS - EOL, REED & TAMPER SUP3 MIN 3YR
$151.00
| SKU: | 406143 |
|---|---|
| MPN: | S4750 |
| Manufacturer: | https://www.inovonics.com/ |
| Brand: | INOVONICS |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼

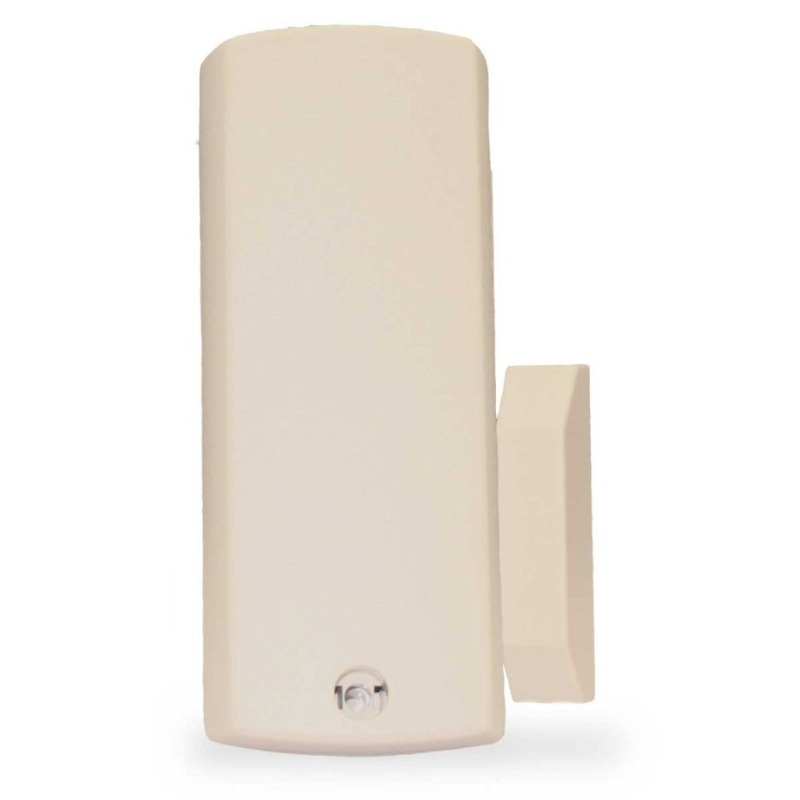

The Inovonics EN1215WEOL door/window with wall tamper and EOL has a built-in magnetic reed switch on the side, with a magnet that supports a 5/8″ gap. A 2.2K ohm end of line resistor is included with the transmitter, and is required to operate it. The transmitter is fully supervised and includes a wall tamper switch that notifies the system when the transmitter is removed from its mounted surface.
Key Features:
- End of line resistor supervision
- Screw closure housing and wall tamper switch proved additional security
- Can be used with almost any standard NO/NC contact
- Fully supervised
- UL listed
Specifications
▼
| Dimensions: | 10.4 x 4.6 x 2.3 cm |
| Weight: | 85g |
| Typical battery life: | 3-5 years |
| Internal battery type: | Panasonic CR123A |
| External contacts: | Normally open or normally closed |
| External contact cabling requirements: | 0.5mm² to 2.5mm², unshielded |
| Distance, external contact to trasmitter: | 3m maximum |
| Temperature: | 0 to 60°C; 0 to 48°C for UL installations |
| Humidity: | Up to 90% (non-condensing) |
| Market: | North America, Australia, New Zealand |
| EchoStream® frequency: | 902-928 MHz, frequency hopping spread spectrum |
| Check-in time frequency: | 3 minutes |
| Regulatory compliance: | FCC, ISED, RCM, RoHS, UL 365, UL 636, UL1023, UL1076, UL 1610, ULC/ORD-C1023-74 |
